Anti-Corrosion  304 Stainless Steel Pipes for Building Water Supply
Anti-Corrosion  304 Stainless Steel Pipes for Building Water Supply

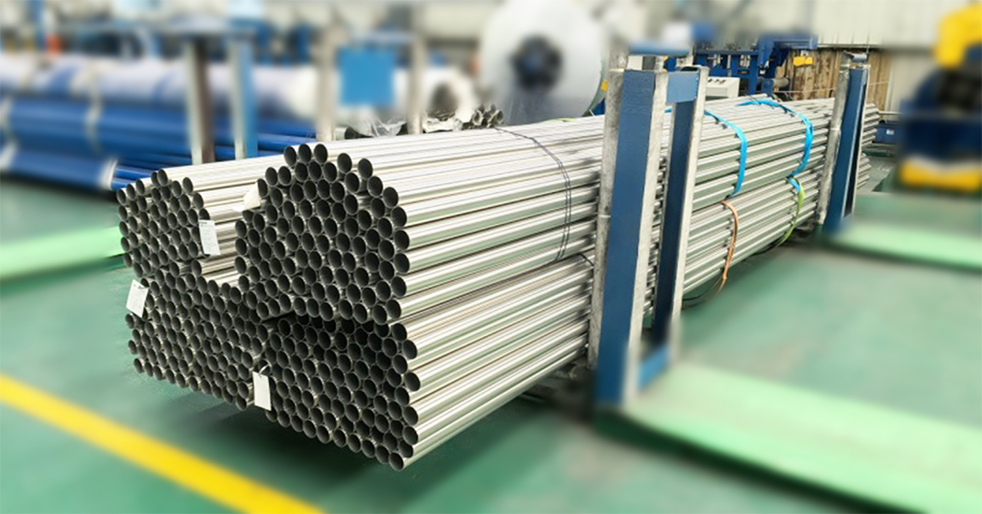

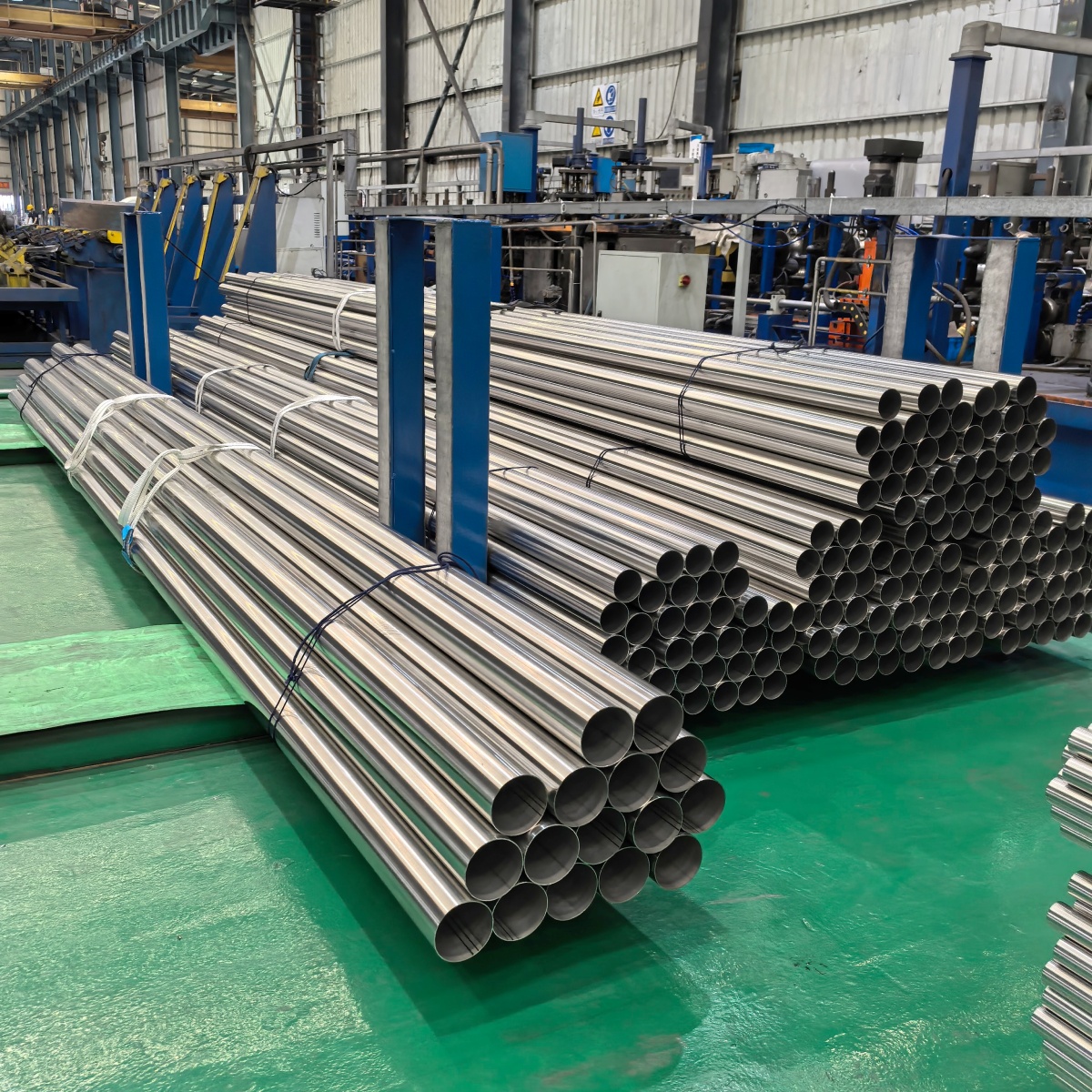

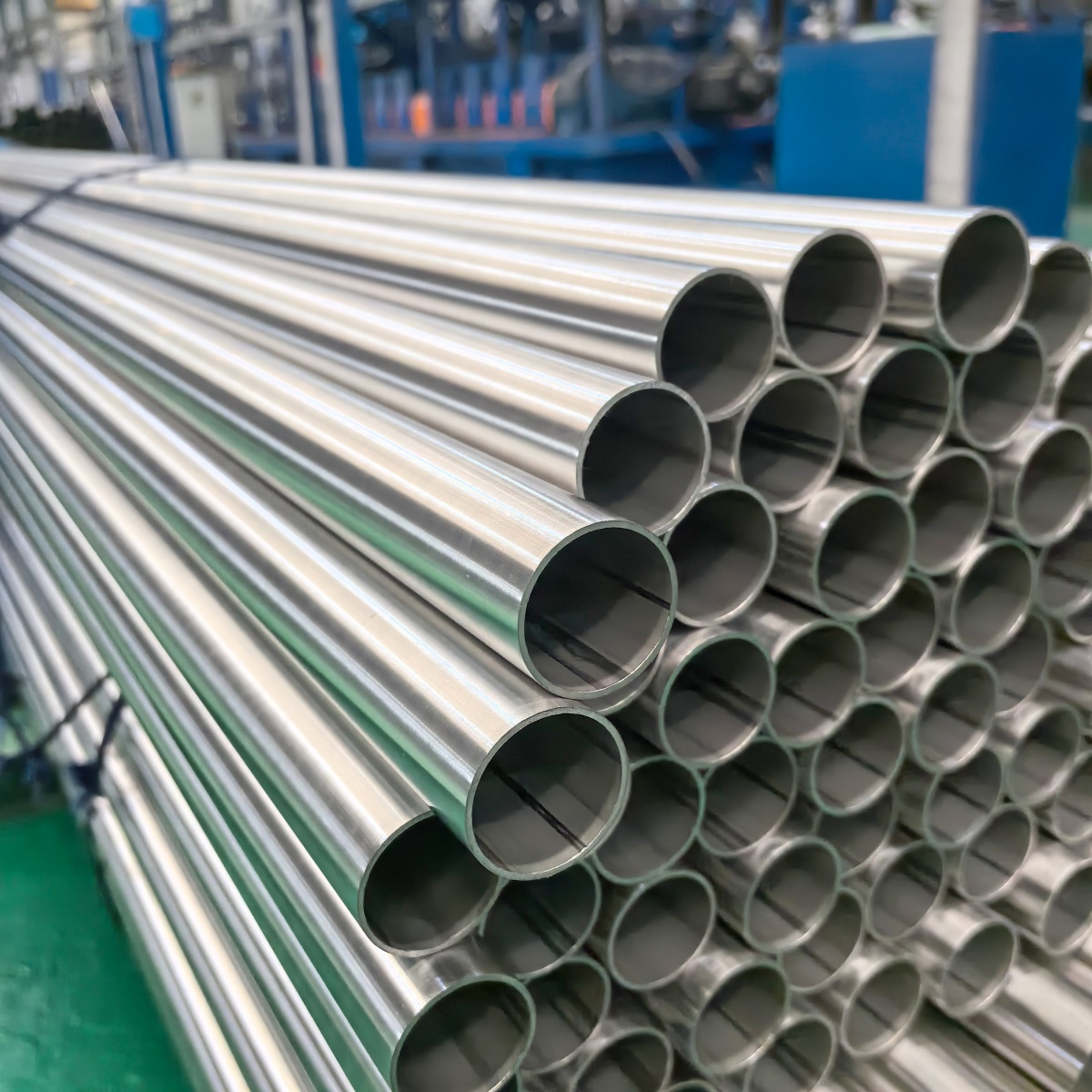

Anti-Corrosion 304 Stainless Steel Pipes for Building Water Supply

Material
SUS304, SUS316L
Standard
GB, JIS, EN, ASTM A312
OD
15 - 300mm
Craft
Welded
Delivery Time
7 - 25days
Payment
TT
Price
Please contact US
Inquire Online
Product Information
Product Catalogue
Contact Us

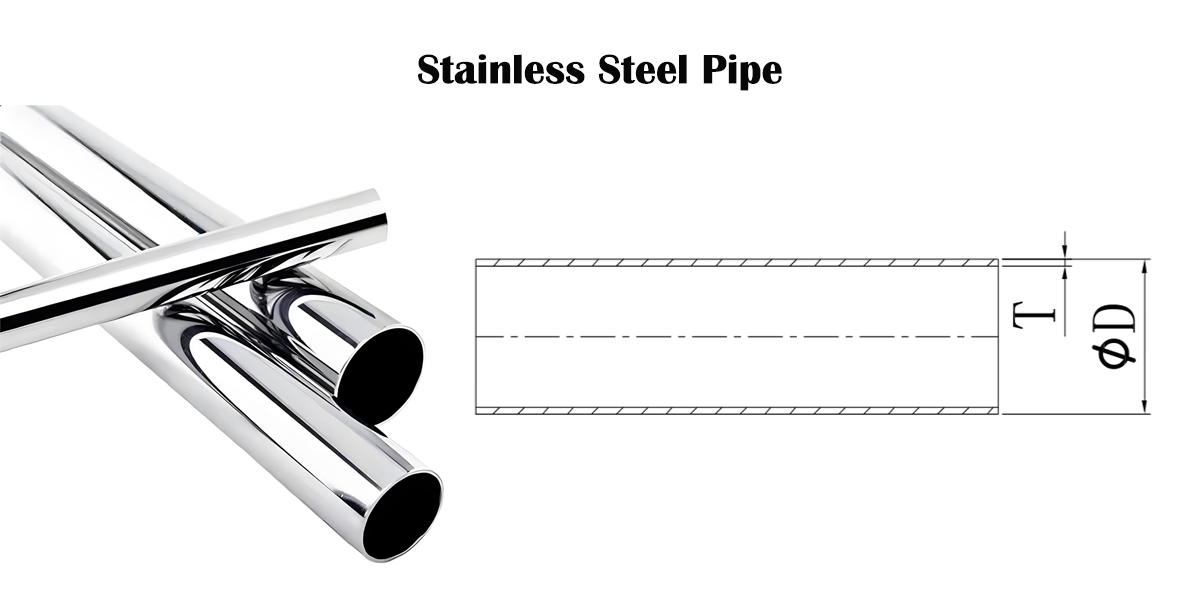

Specification(EN standard)
Outer Diameter(mm) OD tolerance(mm) Thickness(mm) Thickness tolerance(mm)
15 ±0.10 1 1
18 ±0.10 1 1
22 ±0.11 1.2 1.2
28 ±0.14 1.2 1.2
35 ±0.18 1.5 1.5
42 ±0.21 1.5 1.5
54 ±0.27 1.5 1.5
64 ±0.32 2 2
76.1 ±0.38 2 2
88.9 ±0.44 2 2
108 ±0.54 2 2
133 ±1.00 3 3
159 ±1.00 3 3
219 ±1.50 3 3


Download Product Catalog (PDF)

Anti-Corrosion Sanitary 304 316L Stainless Steel Pipes for Water & Gas Supply









304 Stainless Steel Pipes for Building Water Supply

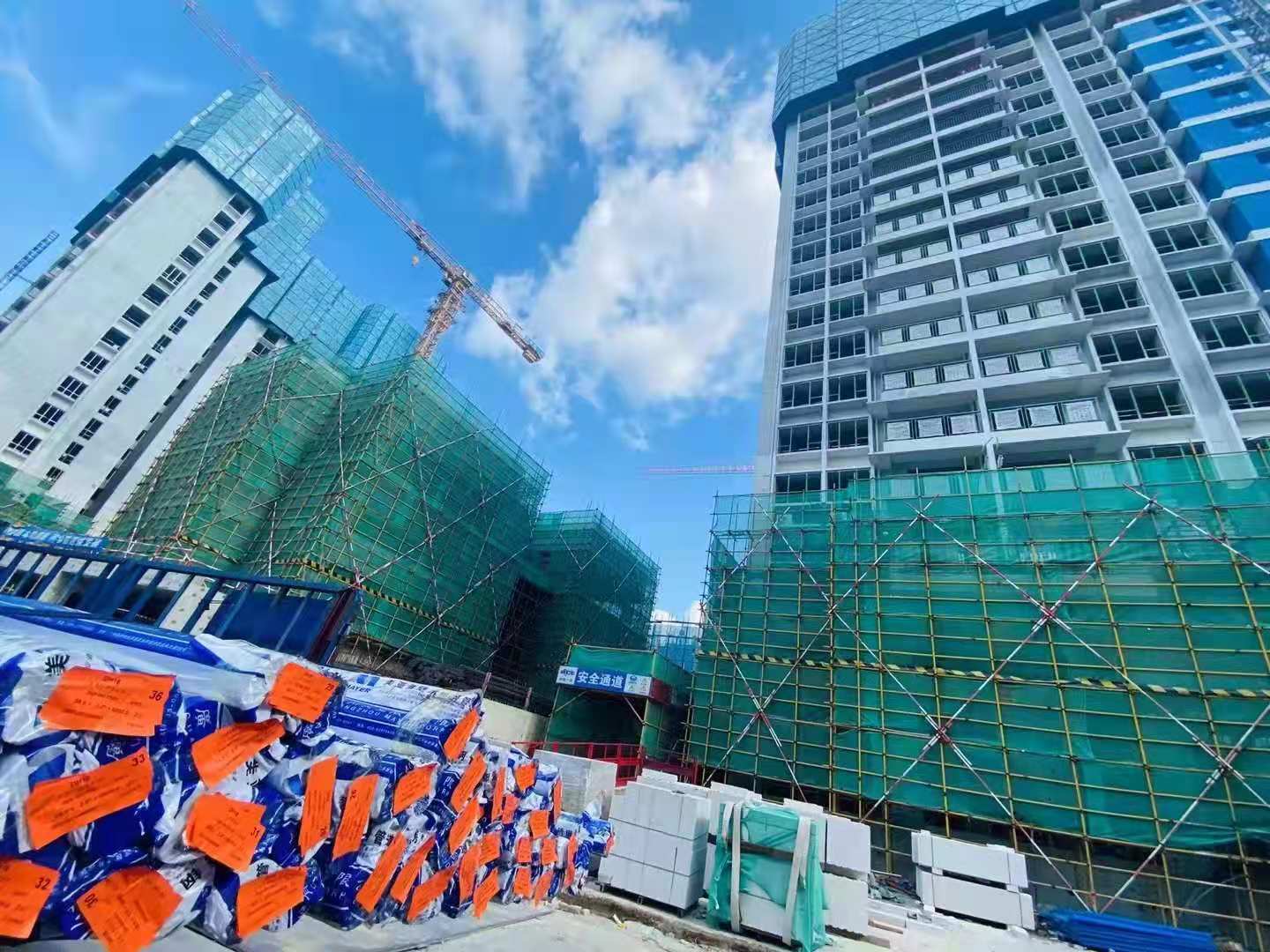

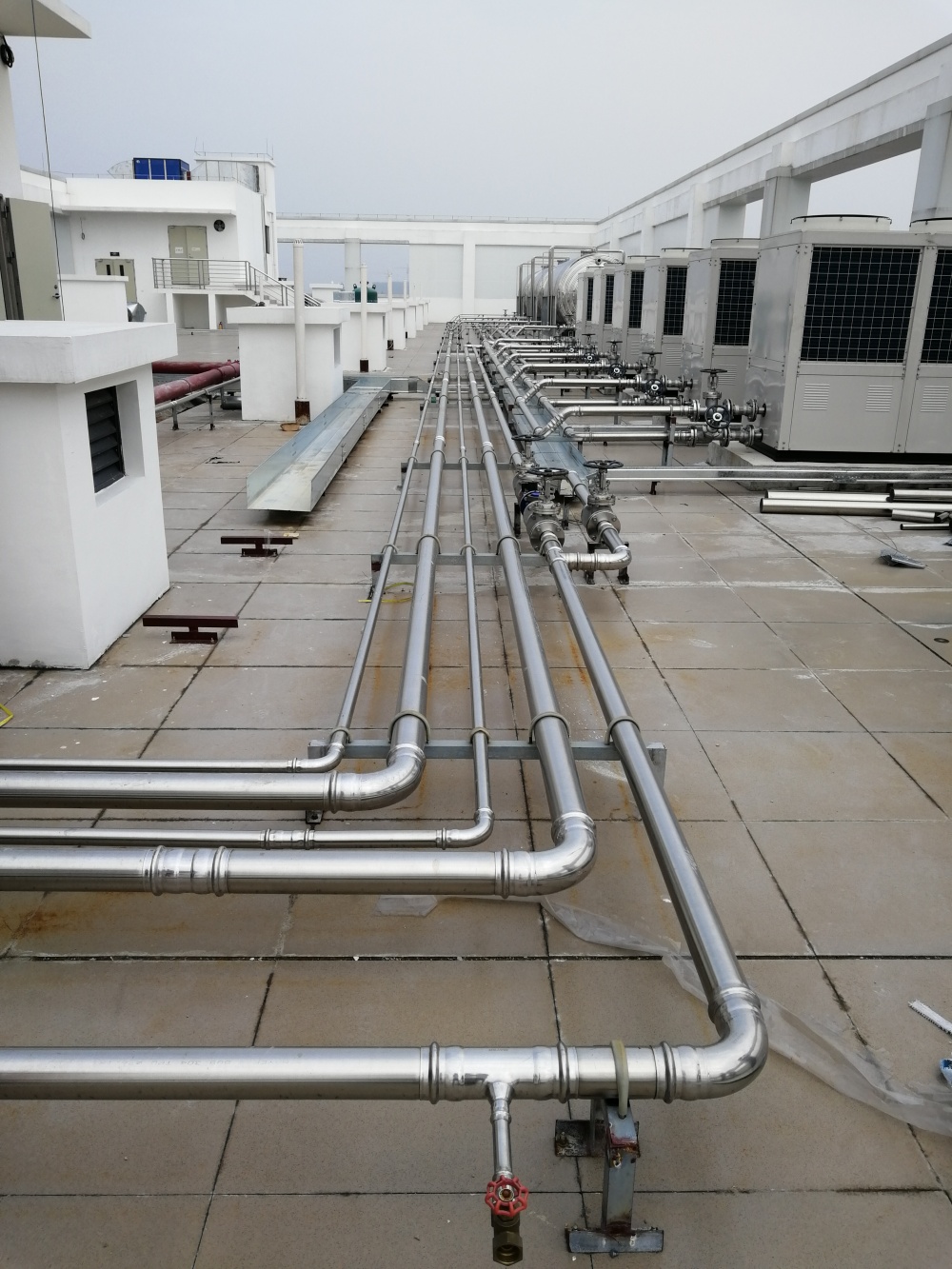

304 stainless steel pipes are mainly used in cold water pipes, hot water pipes, direct drinking water pipes and fire sprinkler pipes in building water supply systems. It usually adopts clamping type, ring pressure type or welding connection, and is buried or installed in the wall or tube well. It uses its smooth inner wall to reduce water head loss and relies on its excellent corrosion resistance to ensure that the water quality is free of secondary pollution for a long time.



Why choose 304 stainless steel pipe for building water supply?

1. It has strong corrosion resistance and can resist chloride ions and corrosive media in the water supply.
2. High strength, thin wall thickness, and good earthquake and impact resistance.
3. The inner wall is smooth and not easy to scale, and the flow rate is stable for long-term use.
4. The service life can reach more than 70 years, which is the same as the life of the building and requires no maintenance.
5. It is environmentally friendly and hygienic, does not release harmful substances, and complies with direct drinking water standards.








Why choose Guangzhou Mayer’s stainless steel pipes?

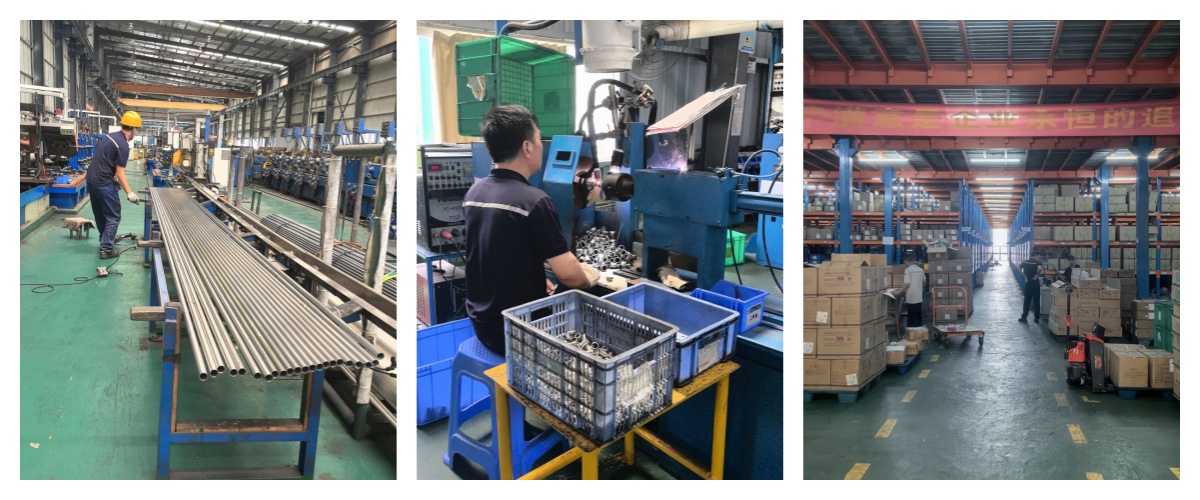

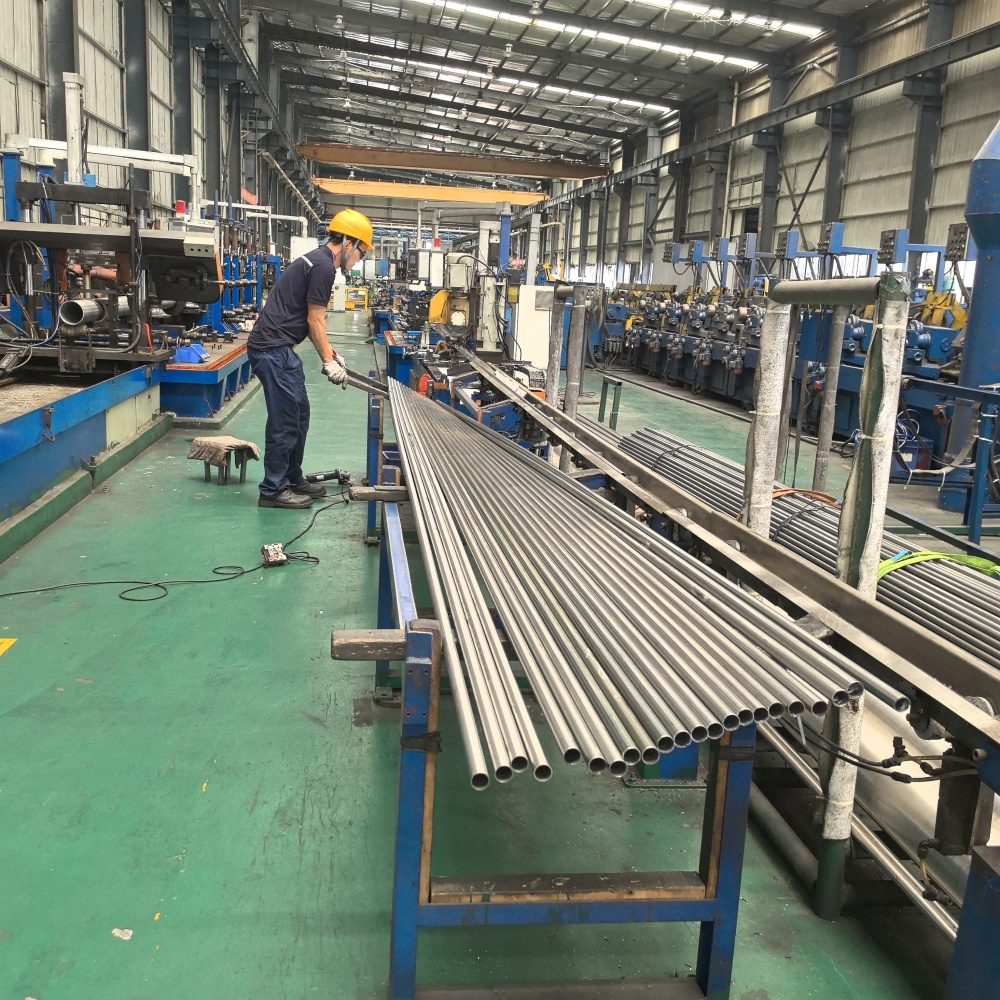

1. Nearly 70 years of deep cultivation and full-process quality control: Meiya has nearly 70 years of experience in manufacturing stainless steel pipes, and has achieved full-process independent production from steel coil striping, pipe making to pipe fittings. Each finished product has a traceability code that can be traced back to the source of raw materials.

2. International authoritative certification: It holds multiple international certifications such as British WRAS, Australian WaterMark, and Hong Kong Water Supplies Department, and its products meet global high standards.

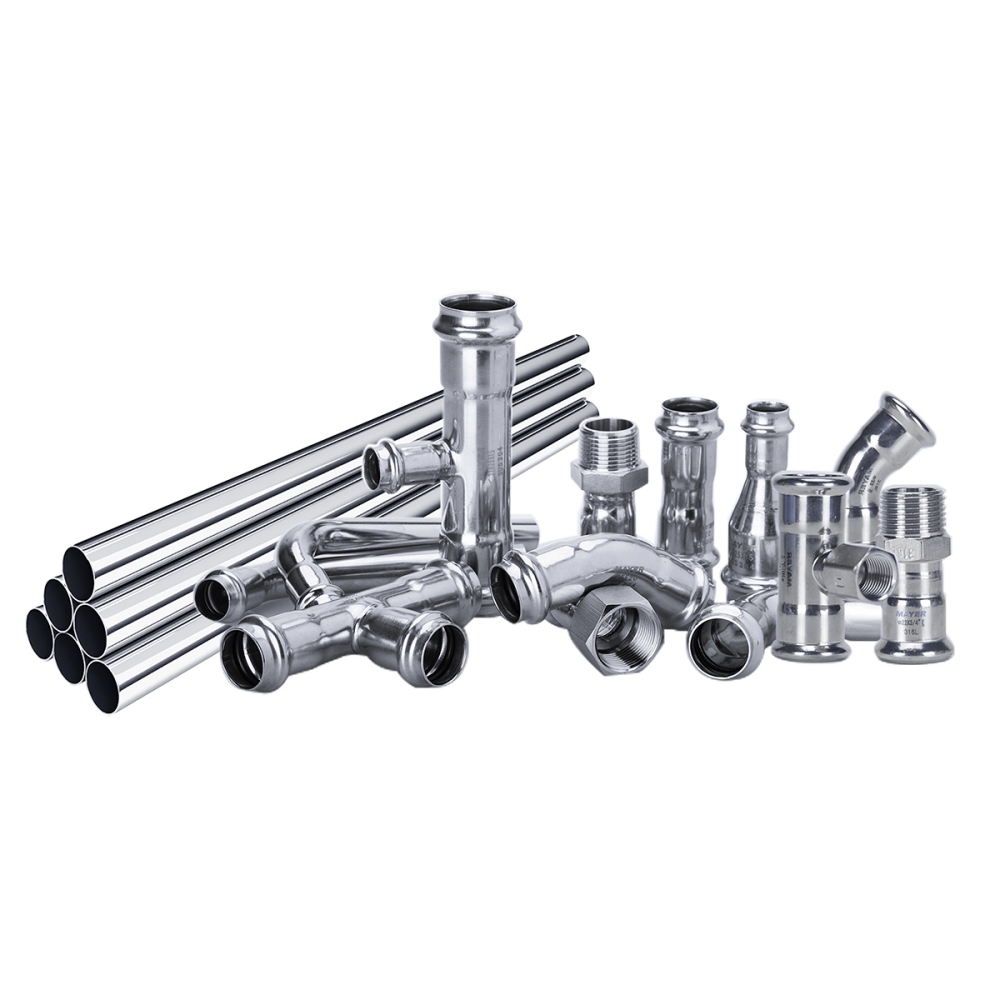

3. Efficient and safe connection technology: It adopts double compression connection method. It only takes 5 seconds to install a single interface. It is equipped with leak-proof sealing ring to ensure safe and reliable construction.

4. Ultra-long service life and hygienic performance: Made of food-grade 304/316L stainless steel, it is corrosion-resistant, non-scaling, inhibits bacterial growth, and has a service life of up to 70 years, far exceeding traditional pipes.

5. One-stop solution capabilities: From pipeline manufacturing to direct drinking water advanced treatment equipment, we provide a full-chain service of "purification + transportation + terminal water intake", which has been successfully implemented in many benchmark projects such as Guangdong Radio and Television Station. Inquire Now
