According to actual weight
Advantages
As a material which can be implantable in human body, stainless steel has its natural advantages
1. Corrosion-resistance and Longevity
2. Simple Installation and Quick Operation
3. High Intensity and Light Material
4. Healthy Material and Environmental Friendliness
5. Water Proof, Resistance to the Impact and High Pressure, Low Flow Obstacle
6. Convenient Maintenance and Modification

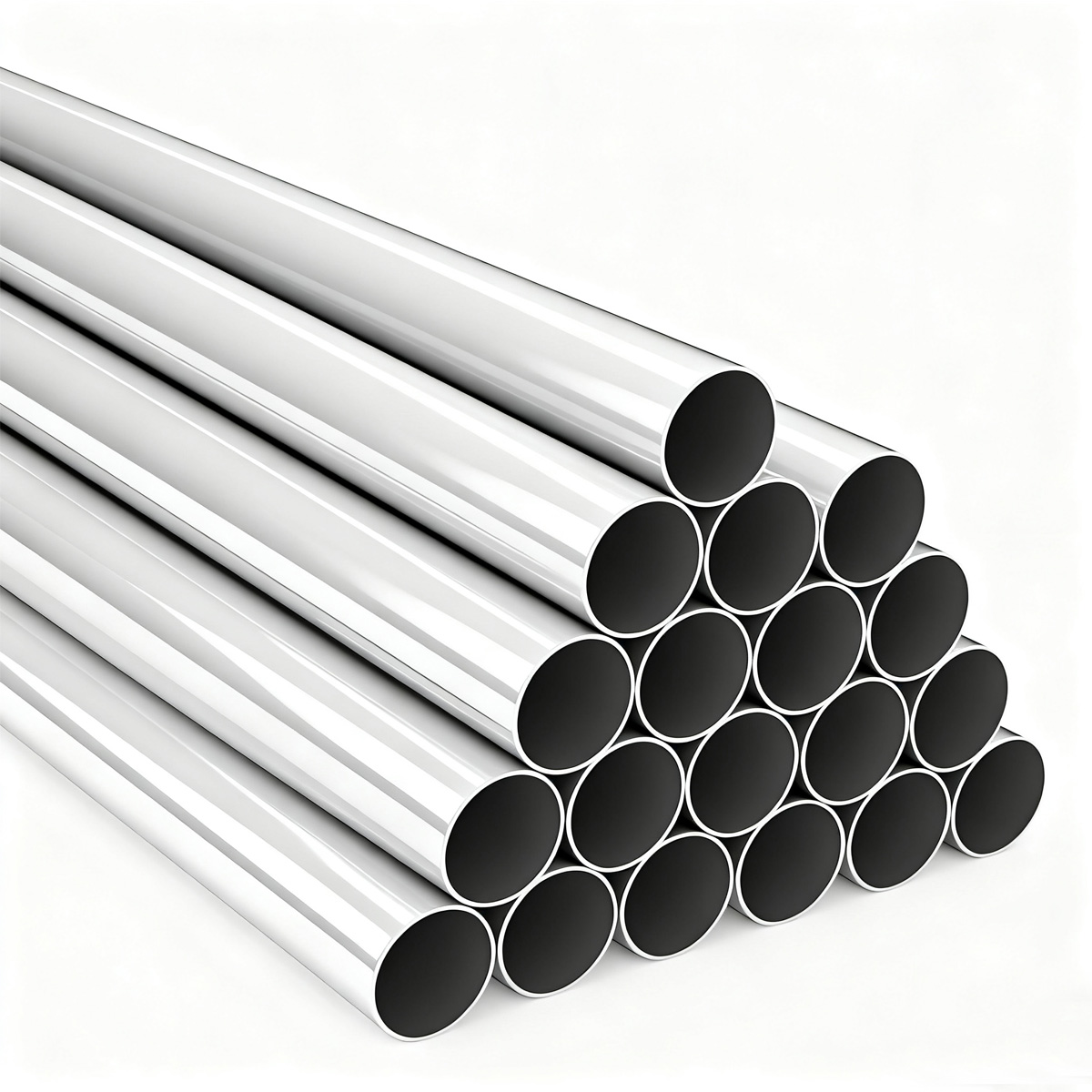

304 316L Stainless steel pipe factory - Mayer
Currently we have stainless steel tube & pipe, PE coated insulating tube, and coated corrosion resistant tube.
And stainless steel fittings for each spec of stainless steel tube & pipe are available.
We provide press fitting for DN15-100, welding fitting and grooved fitting for above DN100 to DN300 regularly.

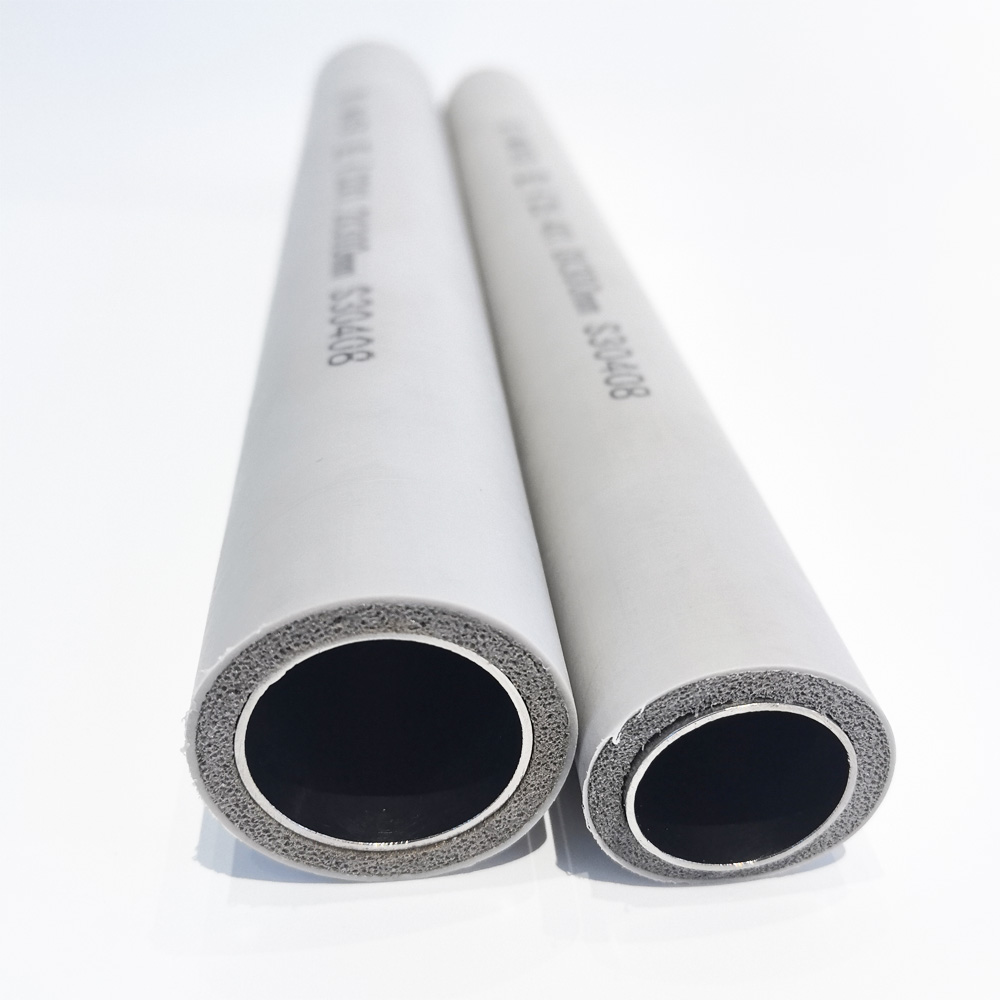

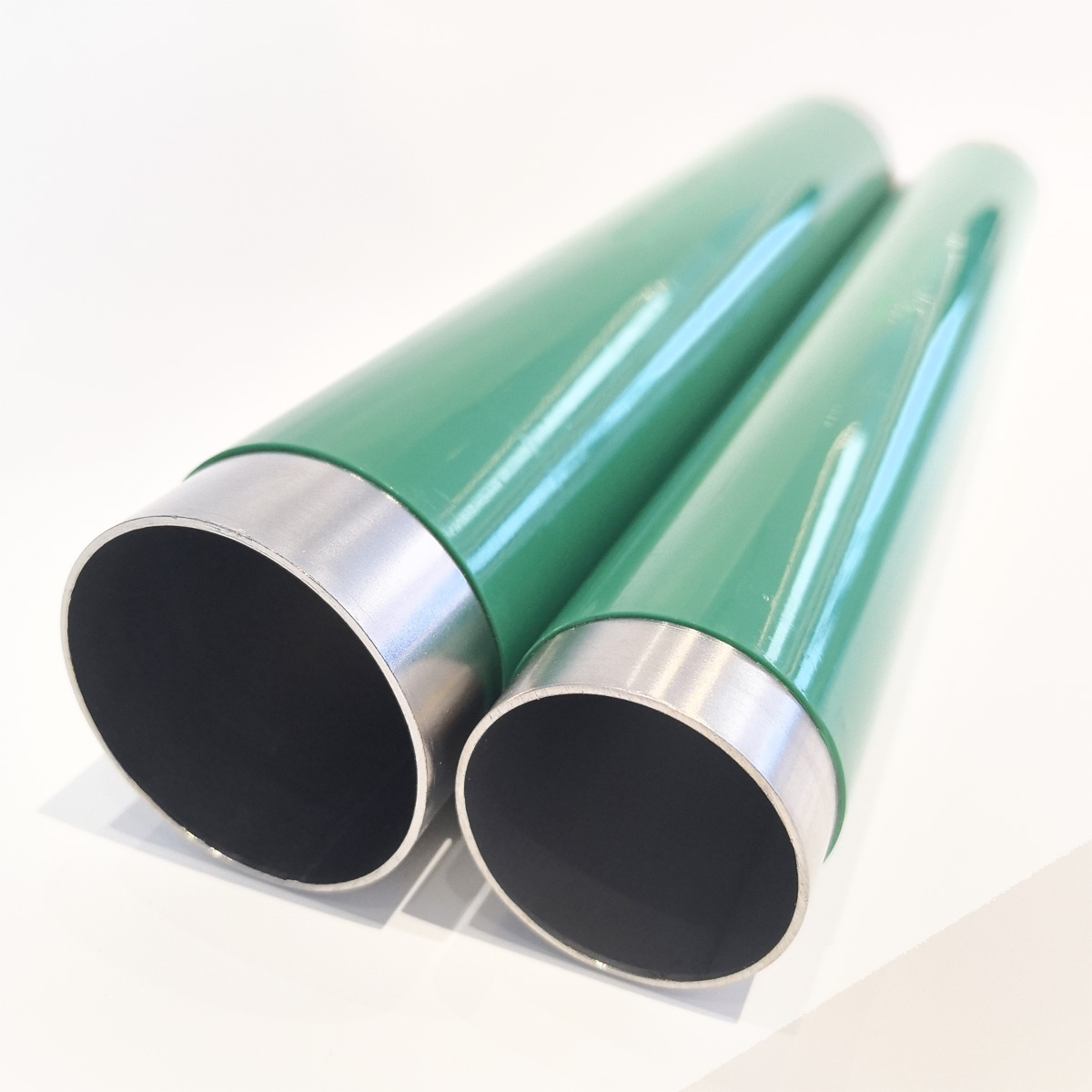

PE coated insulating tube and coated corrosion resistant tube
Stainless steel fitting
Tube & Pipe and Fitting material
| Material | C | Si | Mn | P | S | Ni | Cr | Mo |
| SUS 304 | ≤0.080 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.0-11.0 | 18.0-20.0 | - |
| SUS 316L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
For all products of Mayer, quality is assured: all pipes and fittings must pass rigorous air and water tightness tests before leaving the factory.
Currently we have three different series for stainless steel pipe and stainless steel press fitting accordingly. We export our pipe and fitting to Asia, Europe, Australia and Africa, if you have demand for those products, welcome to contact us.

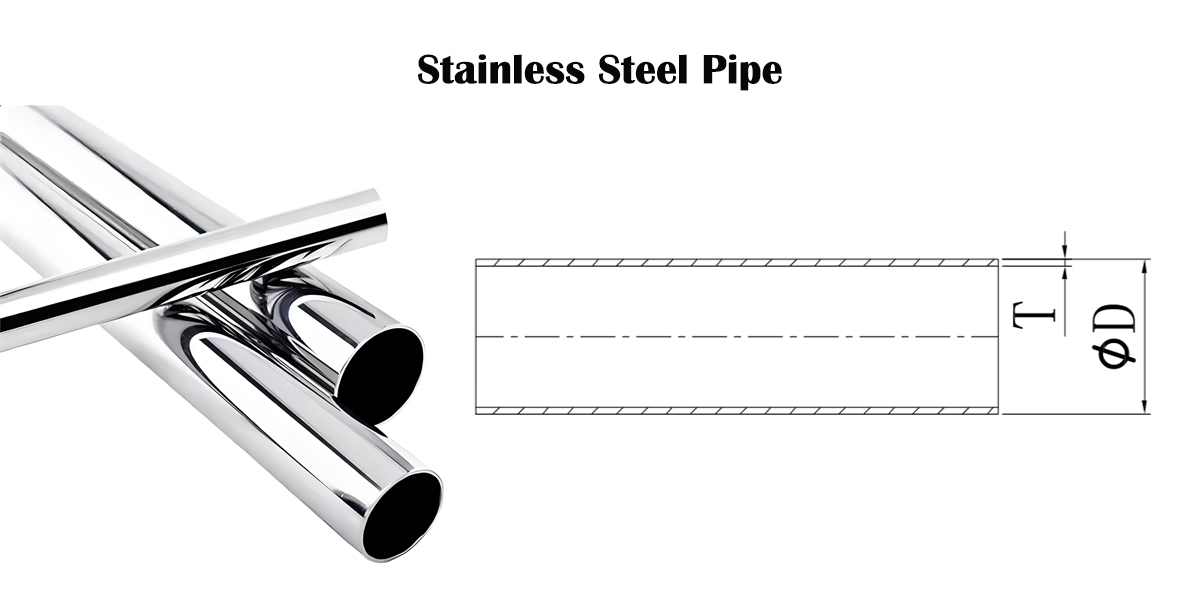

SeriesⅠ(GB) | Series Ⅱ(JIS) | E series(EN) | ||||||
Nominal diameter | outer diameter | Thickness | Nominal diameter | outer diameter | Thickness | Code | outer diameter | Thickness |
DN15 | 16 | 0.8 | DN15 | 15.88 | 0.8 | E0115 | 15 | 1.0 |
DN20 | 20 | 1.0 | DN20 | 22.22 | 1.0 | E0118 | 18 | 1.0 |
DN25 | 25.4 | 1.0 | DN25 | 28.58 | 1.0 | E0122 | 22 | 1.2 |
DN32 | 32 | 1.2 | DN32 | 34 | 1.2 | E0128 | 28 | 1.2 |
DN40 | 40 | 1.2 | DN40 | 42.7 | 1.2 | E0135 | 35 | 1.5 |
DN50 | 50.8 | 1.2 | DN50 | 48.6 | 1.2 | E0142 | 42 | 1.5 |
DN65 | 76.1 | 2.0 | DN65 | 76.1 | 2.0 | E0154 | 54 | 1.5 |
DN80 | 88.9 | 2.0 | DN80 | 88.9 | 2.0 | E0176 | 76.1 | 2.0 |
DN100 | 108 | 2.0 | DN100 | 101.6 | 2.0 | E0189 | 88.9 | 2.0 |
E01108 | 108 | 2.0 | ||||||
