Product Paramenters

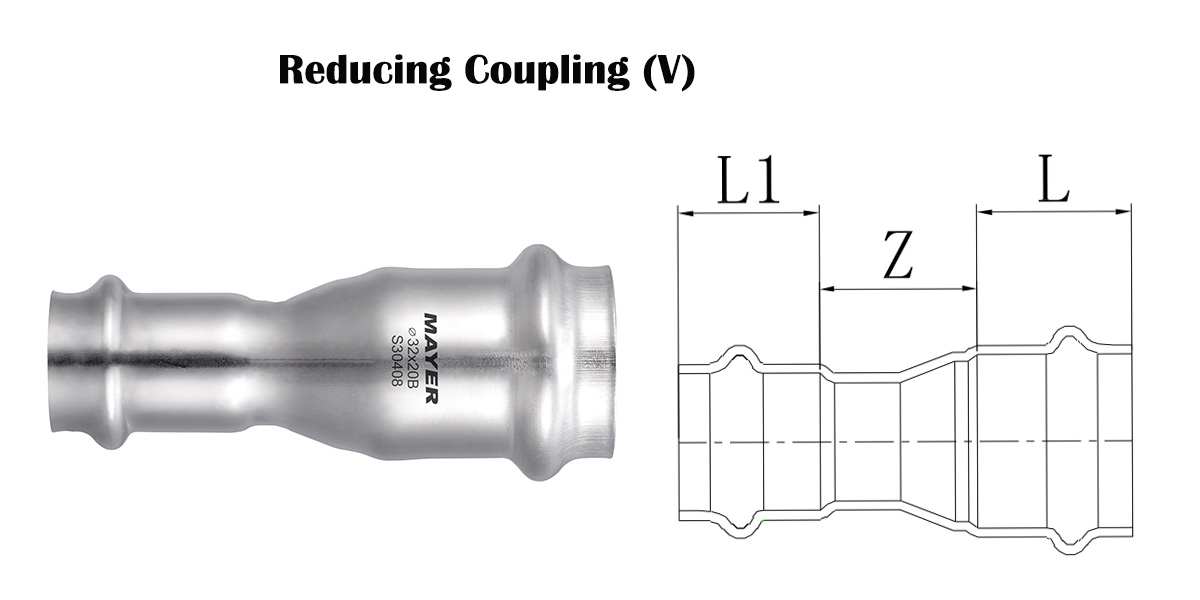

| Reducing Coupling (V) | |||
| Size(mm) | L | L1 | Z |
| 18x15 | 20 | 20 | 25 |
| 22x15 | 21 | 20 | 29.5 |
| 22x18 | 21 | 20 | 26 |
| 28x15 | 23 | 20 | 31 |
| 28x18 | 23 | 20 | 26 |
| 28x22 | 23 | 21 | 31.5 |
| 35x22 | 25 | 21 | 35 |
| 35x28 | 25 | 23 | 33.5 |
| 42x28 | 32 | 23 | 36 |
| 42x35 | 32 | 25 | 27 |
| 54x28 | 36 | 23 | 58 |
| 54x35 | 36 | 25 | 44 |
| 54x42 | 36 | 32 | 33 |
| 76.1 x42 | 60 | 32 | 61 |
| 76.1 x54 | 60 | 36 | 46 |
| 88.9 x54 | 65 | 36 | 48 |
| 88.9 x76.1 | 65 | 60 | 51 |
| 108 x54 | 77 | 36 | 65 |
| 108 x76.1 | 77 | 60 | 67 |
| 108 x88.9 | 77 | 65 | 53 |
 |
 |
