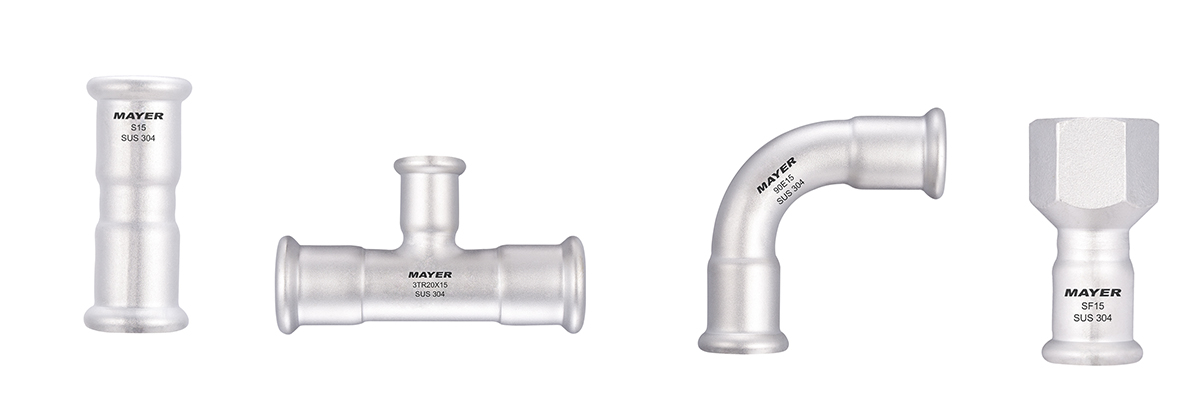

1. Stainless Steel Press‑Fit Fittings for Residential Water Supply
Mayer stainless steel press‑fit fittings are specially developed for Residential Water Supply Systems, delivering high‑performance piping connection solutions for hot‑cold water and potable water transmission in residential buildings.
Consisting of thin‑wall stainless steel fittings and hygienic EPDM O‑rings, the system adopts proven press‑fit technology for pipe sealing connection. Featuring hygienic safety, corrosion resistance, weld‑free assembly, fast installation and long‑term zero‑leak performance, our products are widely applied in new residential construction, plumbing renovation, villa & apartment domestic water supply projects.
Stainless Steel Pipes and Fittings for Residential Water Supply

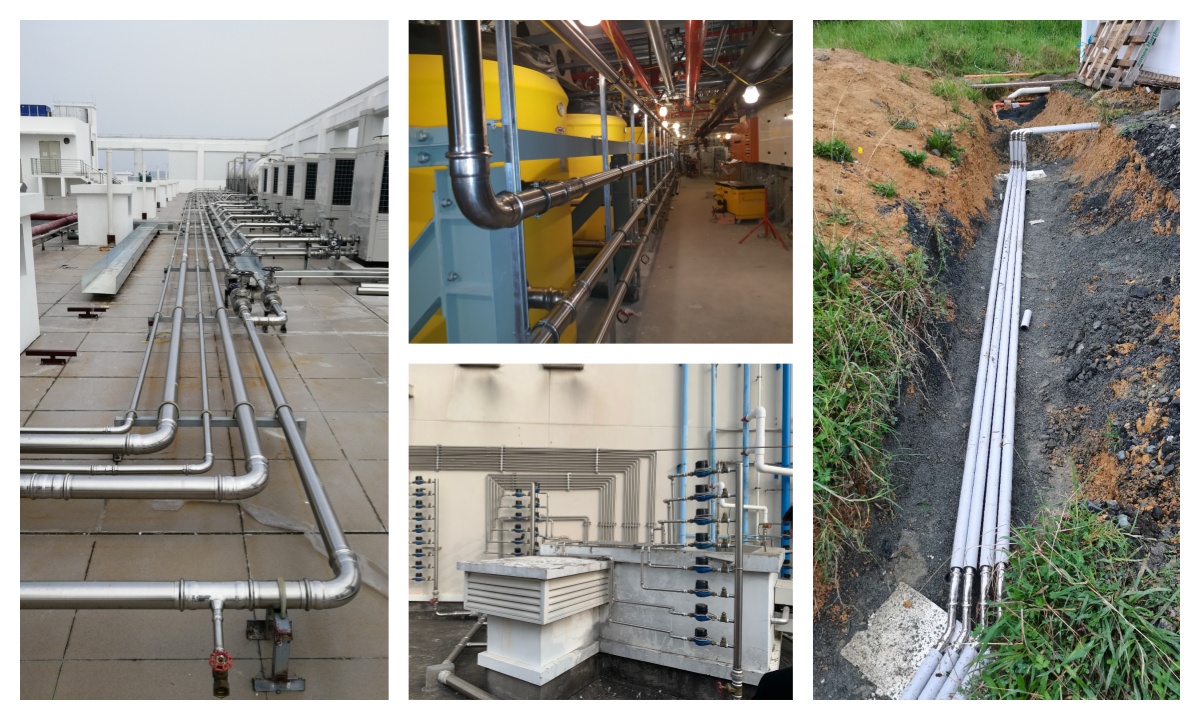

2. Stainless Steel Pipes and Fittings Application & Application Scenarios
Stainless steel press‑fit fittings perform diversion, direction change, diameter transition, pipe coupling and end‑cap functions for indoor residential water supply pipelines. They connect main inlet pipes, household branch pipes, kitchen‑bathroom water outlets and water heater circulation loops.
Typical application scenarios:
1. Cold & Hot Potable Water Piping for Residential Units
2. Whole‑house Domestic Water Supply for Villas & Luxury Apartments

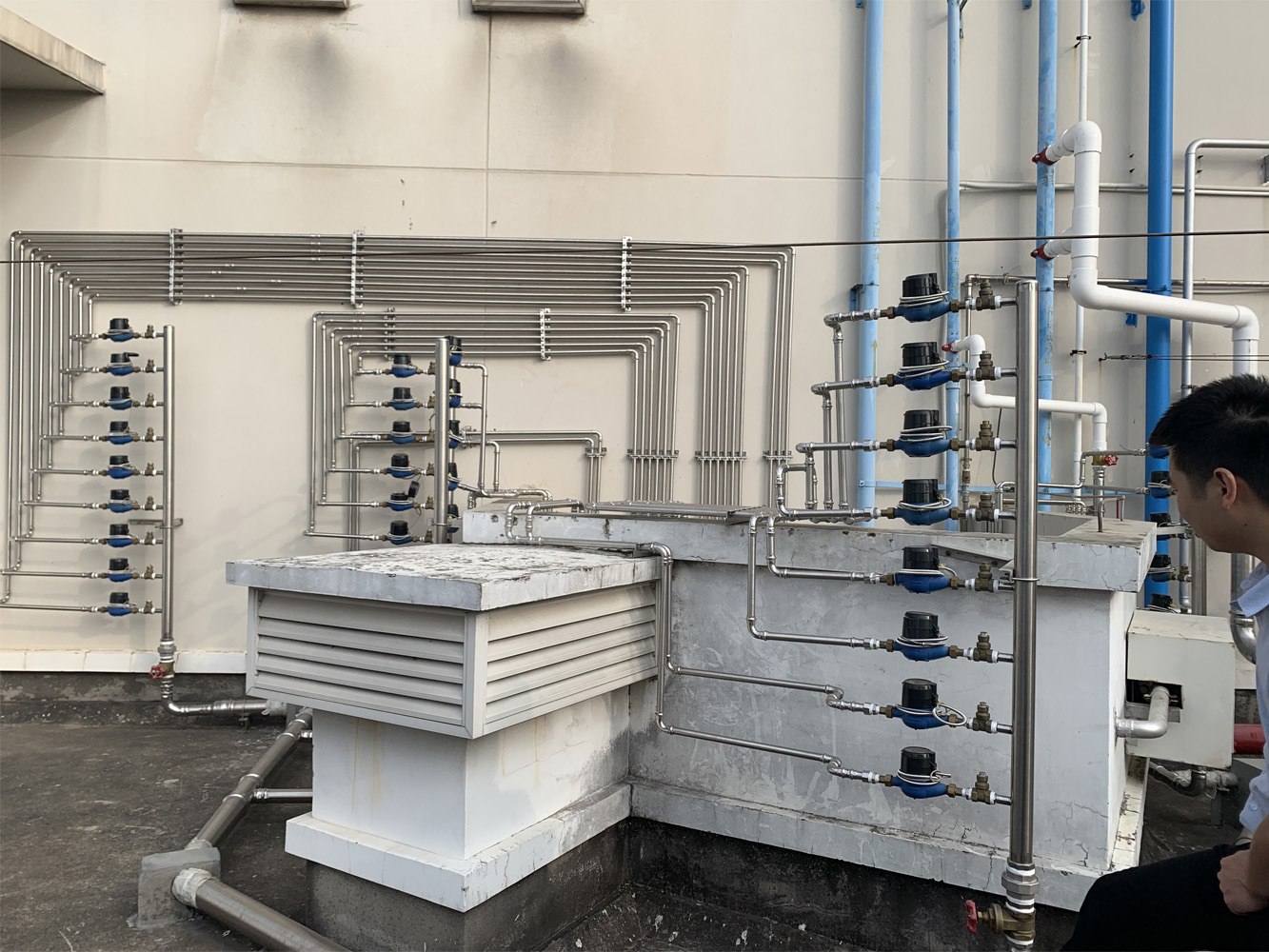

3. Indoor water distribution & riser branch pipes for high‑rise residential buildings
4. Residential plumbing renovation & old pipe replacement projects
5. Water connection for kitchen, bathroom, water heater & water purification devices
Stainless Steel Pipes and Fittings for Kitchen
Stainless Steel Pipes and Fittings for Bathroom

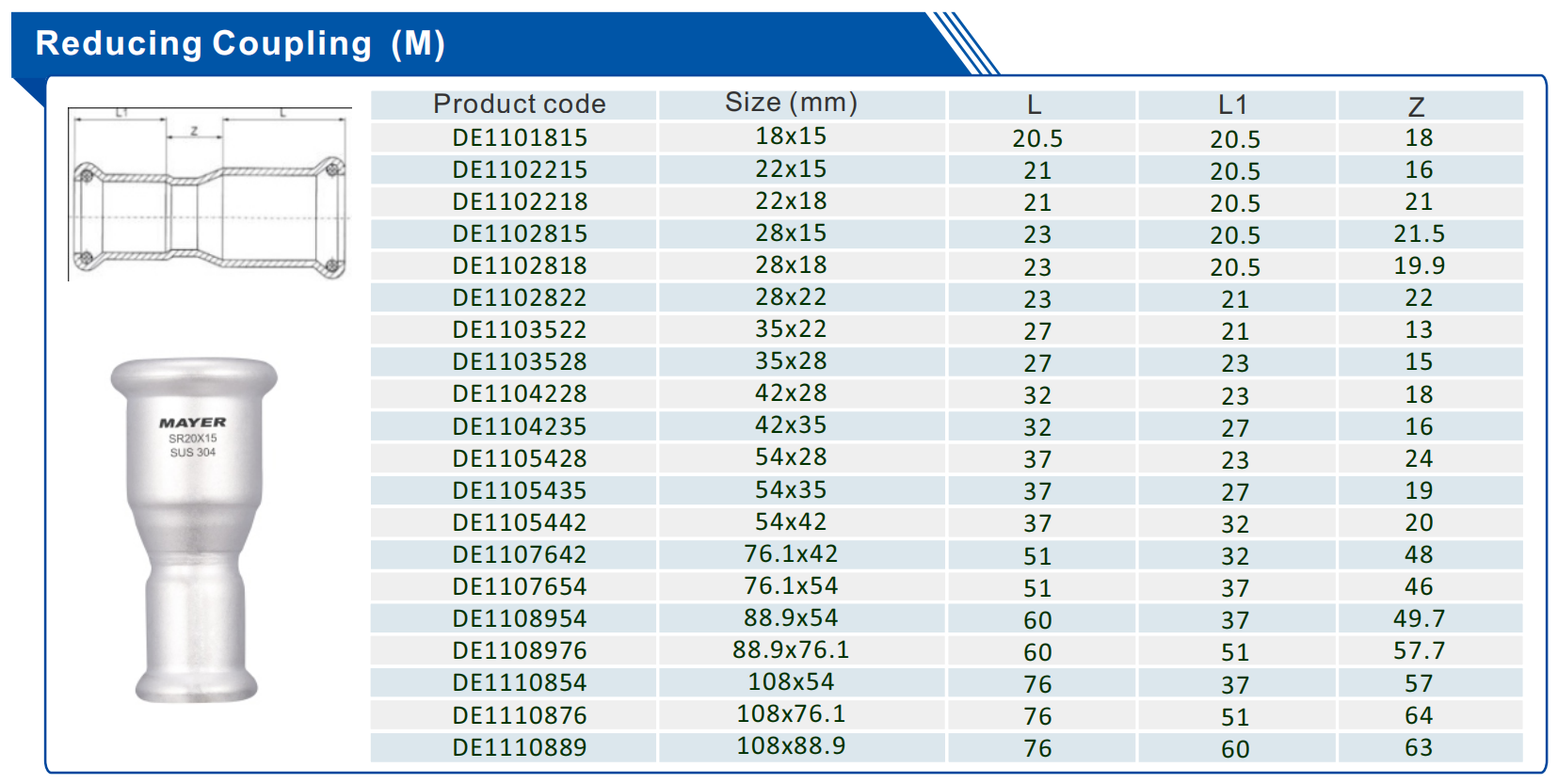

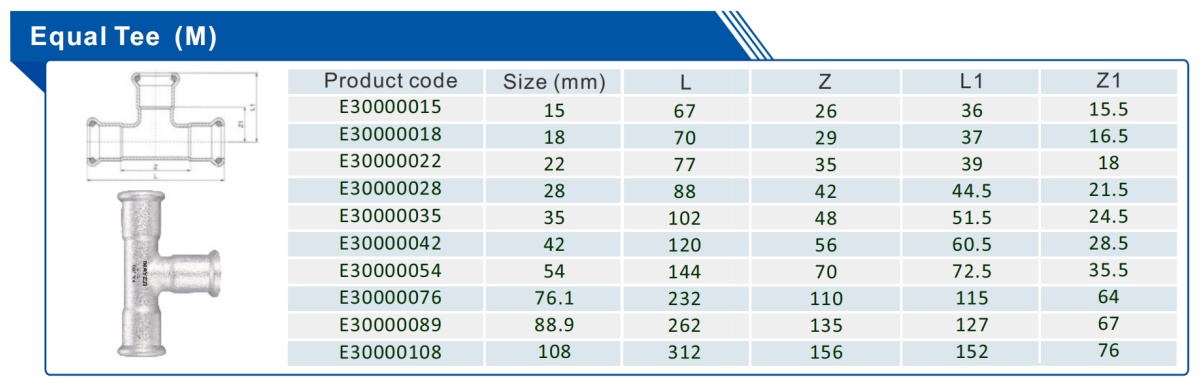

3. Product Parameters
OEM / ODM Customized Servife - Manufacturer Directly
Download Product Catalog
4. Press‑Fit Connection Method
Adopt proven thin‑wall stainless steel Double Press‑Fit Connection. No welding, threading or glue required. Fit the fitting onto matched stainless steel pipe, then apply radial compression on both fitting sockets with dedicated hydraulic press tool. The inner EPDM O‑ring is compressed to achieve dual performance of high‑strength mechanical locking and sealing. Each joint can be finished within seconds for fast installation. Joints feature excellent pull‑out resistance and anti‑vibration performance to realize permanent leak‑proof connection, suitable for concealed piping inside walls or ceilings in residential projects.
Stainless Steel Pipes and Fittings Press‑Fit Connection Method
The typical installation process includes:
 |
1. Cutting
Confirm the pipe length needed, and cut it with approved burr-free cutters.
Oxy-acetylene torches and abrasive cut-off wheels are not suitable.
|
 |
2. Deburring
Carefully deburr all pipe cuts inside and outside with a deburrer. Remove any cutting residue thoroughly.
|
 |
3. Assess and mark insertion depth
Mark the pipe with a fine-point felt pen where it meets the fitting for verification of full insertion.
|
 |
4. Check the o-ring
Check the positioning of the o-ring, and lubricate the o-ring with water or talc to ease insertion of the pipe if necessary. Make sure the pipe and fitting are clean and free of oil and sundries.
|
 |
5. Inserting the pipe into the fitting
The pipe is inserted in the fitting with a slight rotating motion until it hits the stop. Check the pipe against the felt pen mark to ensure complete insertion. And the insertion should not be forced at an angle, which will easily cause damage to the o-ring.
|
 |

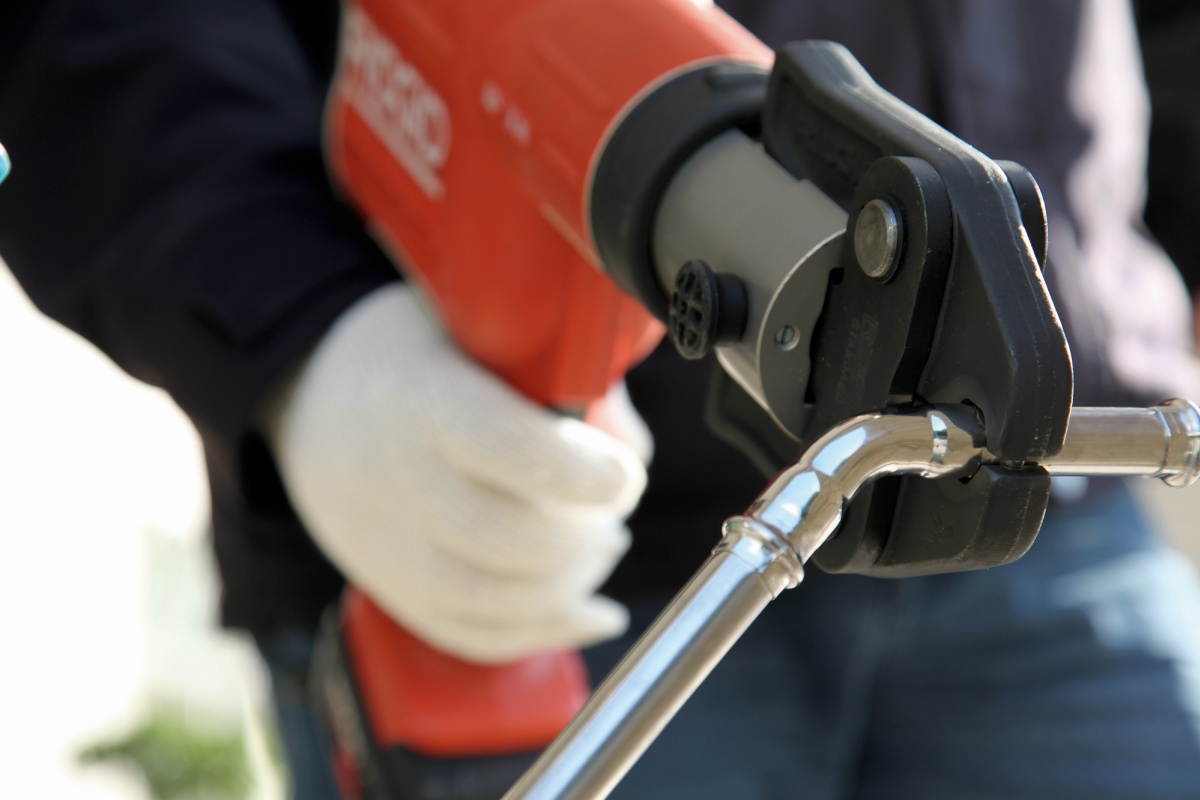

6. Pressing
Position the jaw over the fitting, creating a perfect fit with the internal channel of the jaw around the toroidal seat of the fitting. Make sure that the jaws are perpendicular to the joint, and squeeze the trigger to initiate the press cycle, holding it down for the full duration of press cycle.
|
 |
7. Confirming the size of joint
Confirm the size of joint by measuring the section dimension with a special gauge.
|

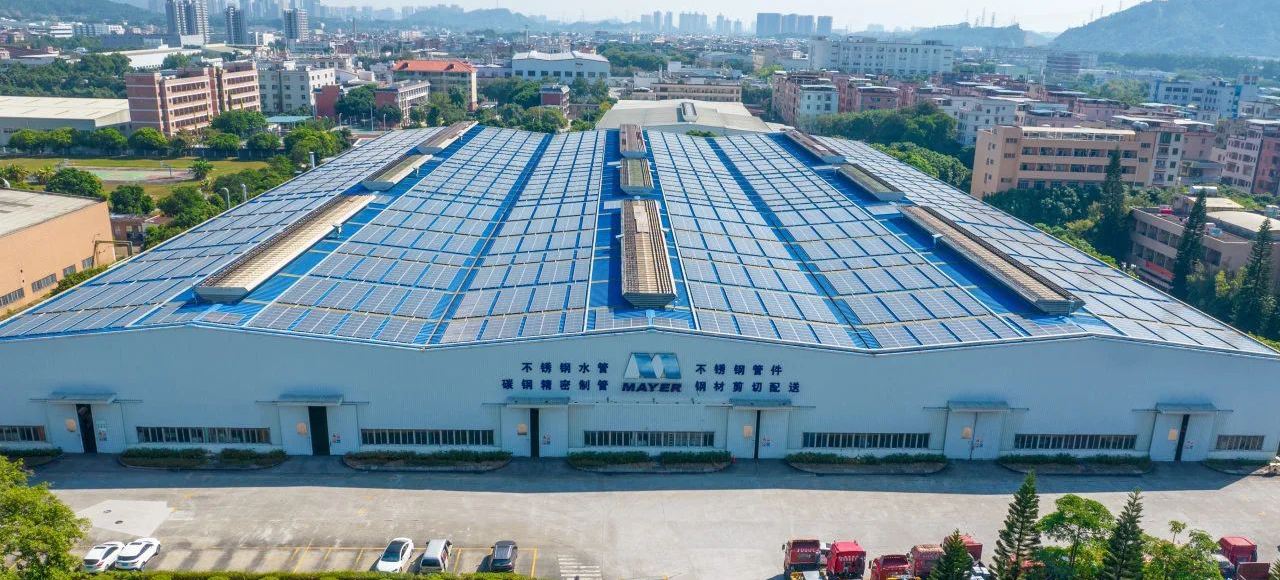

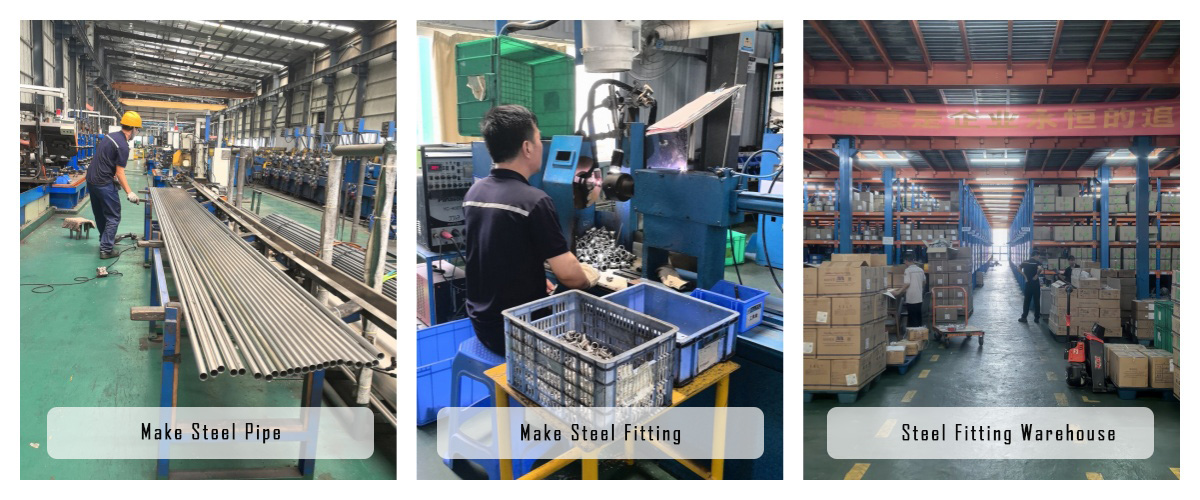

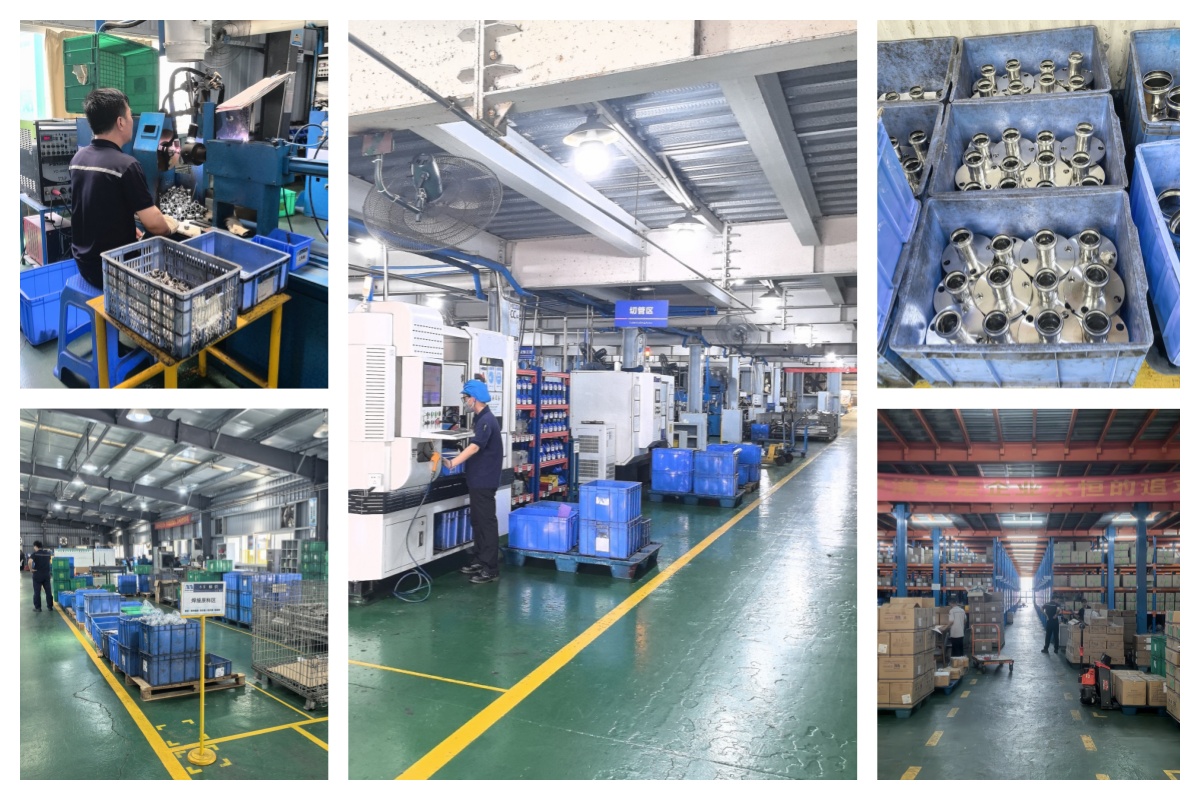

5. Mayer Manufacturing Capacity
Mayer owns a large‑scale specialized factory for stainless steel pipe fittings, equipped with integrated production lines for in‑house mold development, stamping forming, precision machining, surface polishing and seal assembly. The whole production process is self‑controlled from raw material incoming inspection to finished goods delivery. We support mass standardized production, as well as project customization, non‑standard size development and OEM / ODM services, to guarantee stable lead‑time for large‑volume orders from global residential water supply projects.
Annual Capacity: 20,000 tons pipe/year; 6,000,000 pieces fittings/year.
Stock: 10,000 tons pipes/raw materials + 3,500,000 fittings
 |
 |
 |

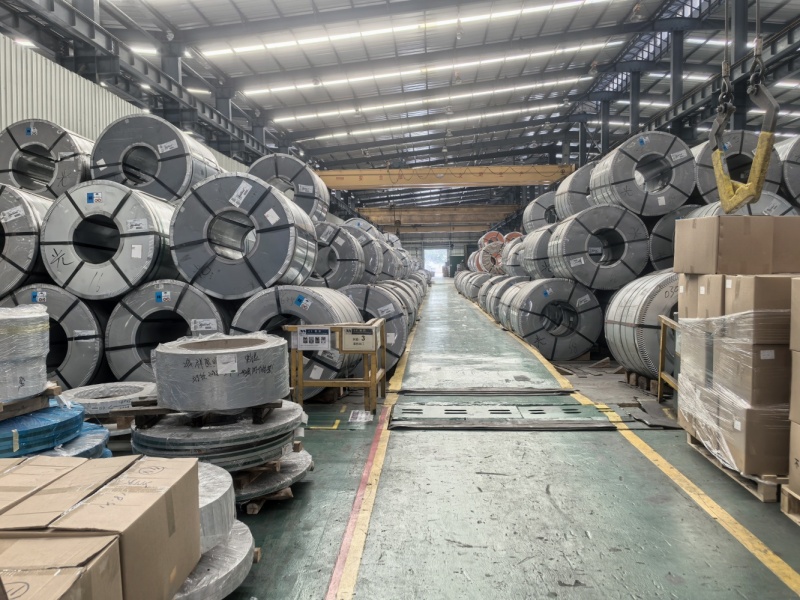

| Stainless Steel Coil |
Stainless Steel Pipes |

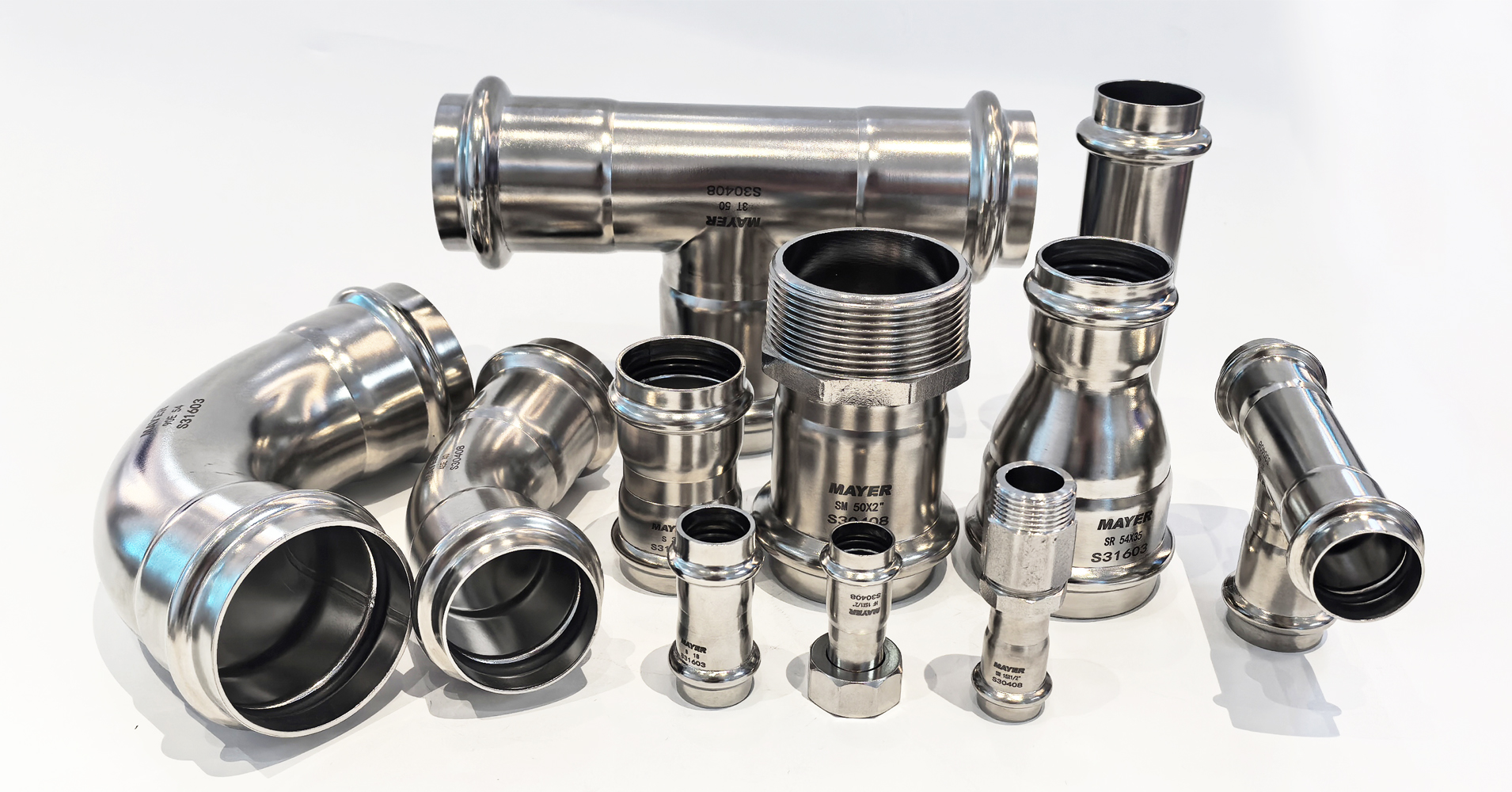

Stainless Steel Fittings |
6. Material Options: Grade 304 & 316L Stainless Steel
Two mainstream stainless steel grades 304 (S30408) and 316L (S31603) are available for different residential water‑supply working conditions.
‑ Stainless Steel 304: Cost‑effective option for ordinary inland residential potable water systems, offering good rust‑proof and hygienic performance for standard household hot‑cold water supply.
‑ Stainless Steel 316L: Molybdenum‑added grade with superior chloride‑ion corrosion resistance. Ideal for coastal residences, hard‑water or high‑chlorine water conditions, with extended service life, preferred for high‑end residential projects.
Standard seal is hygienic EPDM O‑ring, potable‑water approved, temperature‑resistant and anti‑aging.
 |
 |
| AISI 304 |
AISI 316L |
7. Quality Inspection
Every batch of Mayer press‑fit fittings undergoes full‑range factory quality control: raw‑material spectrum analysis, dimensional tolerance check, visual defect inspection, seal compatibility verification, hydrostatic burst test, air tightness test and cyclic pressure endurance test for press joints. Sample products are tested under simulated residential water‑supply working conditions for pressure‑resistance & leak‑proof validation, to guarantee stable performance under residential service pressure and eliminate factory defects.
 |
 |
 |
| Air Tightness Test |
Online Eddy Current Flaw Detection |
LOGO Customization |
8. Certifications
Our products support potable‑water‑contact compliance documentation. Available certifications include ISO quality‑management certificate, CE, WRAS and other market‑required approvals, complying with access standards for residential water‑supply piping projects in different countries. Material test reports, inspection certificates and certification copies can be supplied for project inspection and engineering filing.
9. Project Support
For residential water‑supply projects, Mayer delivers full‑set technical support: drawing‑based product selection consultation, size‑matching suggestion, technical datasheets, installation guidelines and project quotation support. We can prepare complete fitting lists according to project drawings, support phased production & delivery for large‑scale projects, and provide full‑cycle foreign‑trade project coordination, helping overseas residential builders, contractors and wholesalers implement water‑supply piping projects efficiently.
Our Customer
10. Export‑Oriented Packaging
Export‑standard packaging: Each fitting is dust‑protected, sorted into inner boxes, packed into heavy‑duty export cartons with customizable shipping marks. Large‑volume orders adopt reinforced pallet packing with moisture‑proof treatment to avoid collision & deformation during long‑distance sea / land transportation, ensuring intact arrival at overseas project sites.
 |
 |
 |

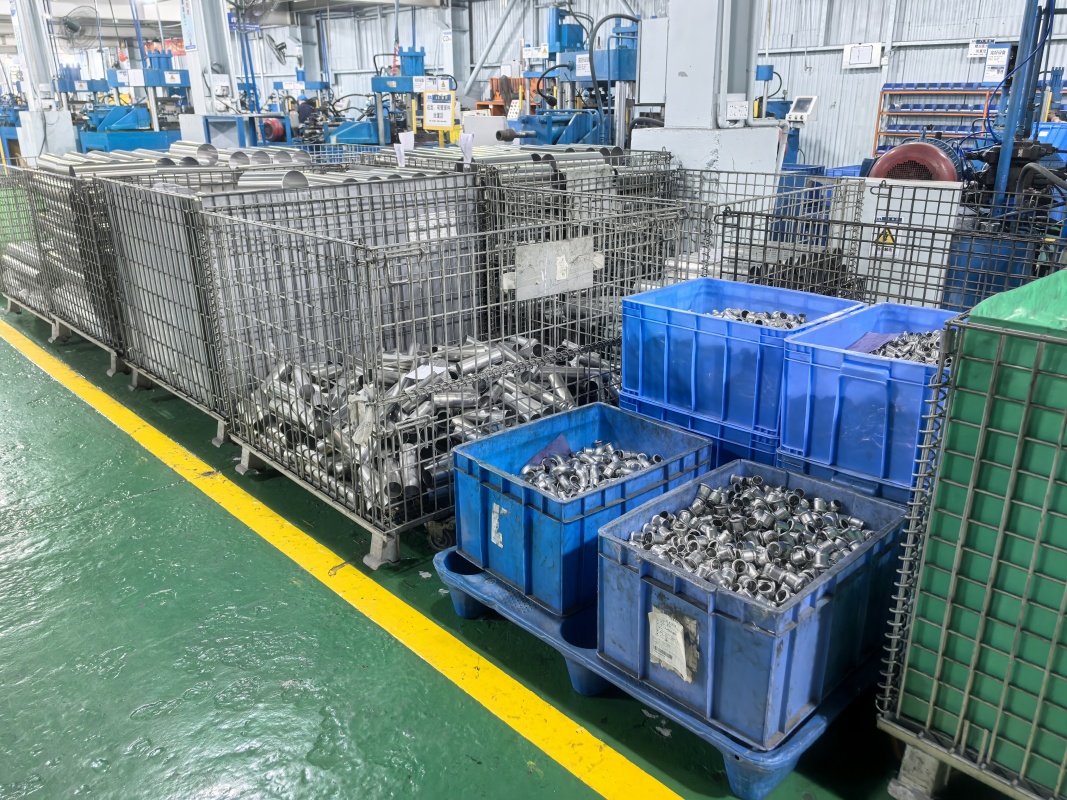

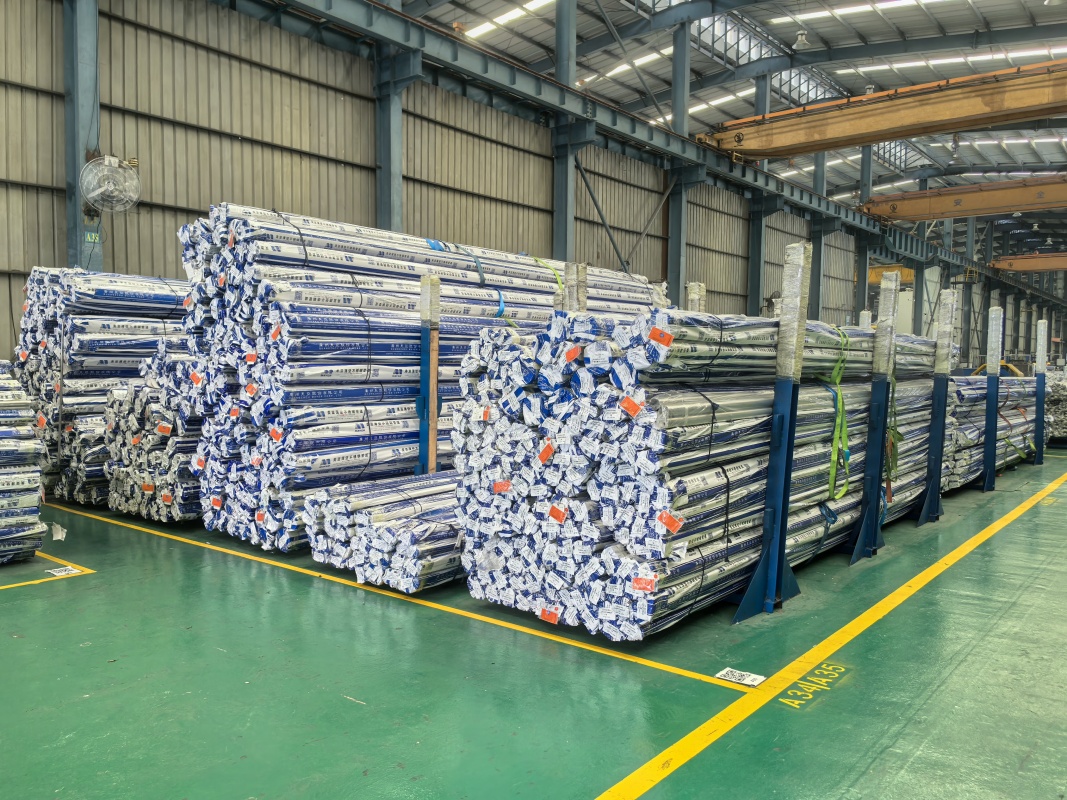

| SS Fittings Warehouse |
Stainlless Steel Fittings Packaging |
Stainless Steel Pipes Packaging |
11. FAQ
Q1. Are stainless steel press fittings suitable for the food and beverage industry?
Yes, for suitable piping applications where the material, sealing elements, connection design, and operating conditions meet the project requirements. Direct food-contact and hygienic process applications require additional suitability verification.
Q2. Should I choose AISI 304 or AISI 316L press fittings?
The choice depends on the conveyed medium, cleaning chemicals, temperature, chloride exposure, and other operating conditions. AISI 316L may be preferable in certain more demanding corrosion environments, but the actual application must be evaluated.
Q3. Can stainless steel press fittings reduce installation time?
The press connection method can simplify assembly and reduce on-site welding work in suitable applications. Actual installation time depends on system design, pipe size, tooling, and installation conditions.
Q4. What information should I provide when requesting a quotation?
Please share the required material grade, fitting types, dimensions, quantities, working pressure and temperature, conveyed medium, applicable standards, and destination market. For hygienic process applications, please also specify the cleaning requirements and any required food-contact documentation.
