Product Paramenters

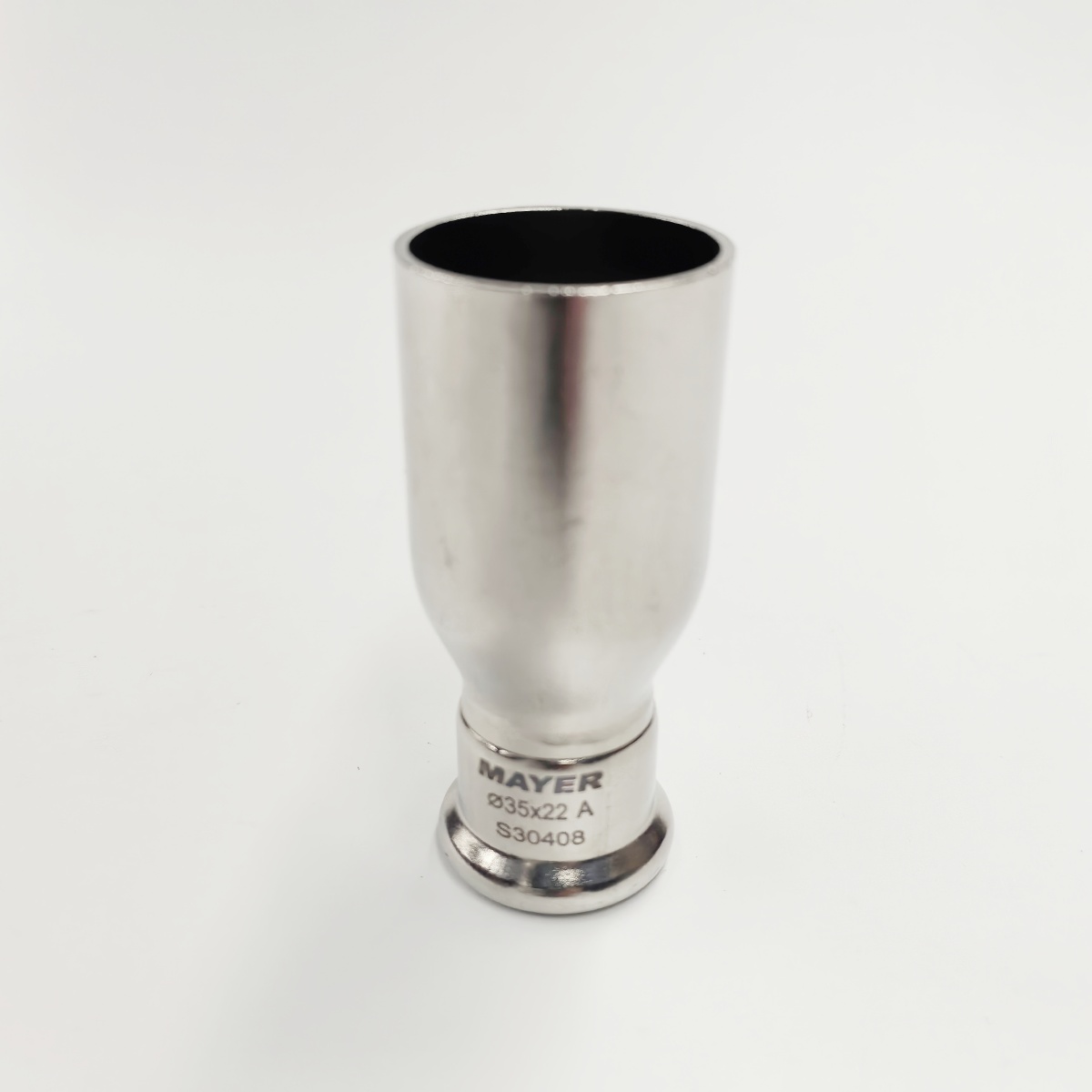

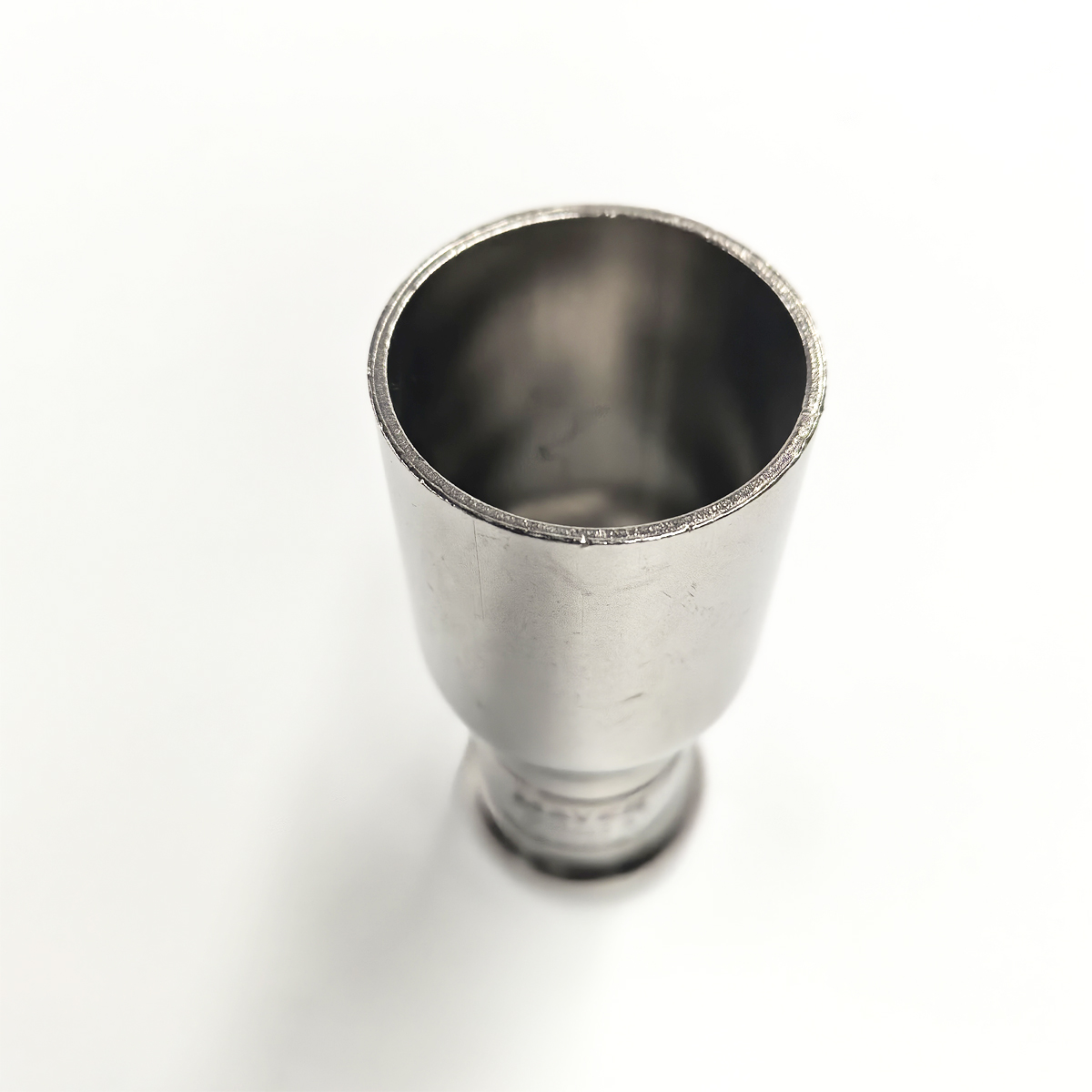

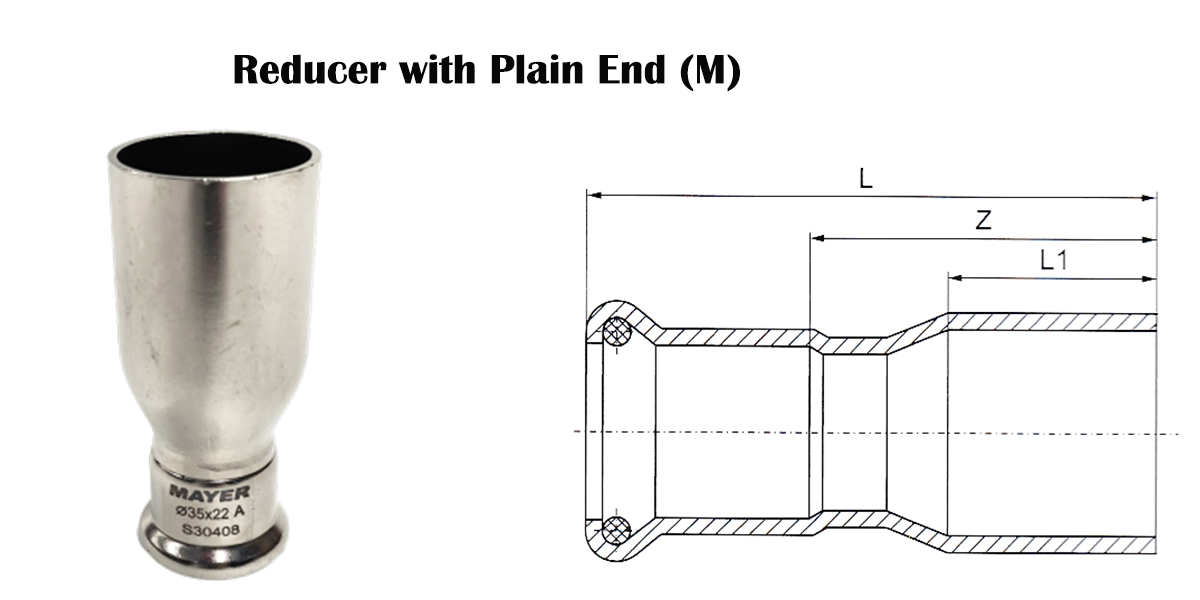

| Reducer with Plain End (M) | |||
| Size (mm) | L | L1 | Z |
| 18x15 | 60 | 28 | 39 |
| 22x15 | 61.5 | 28 | 40.5 |
| 22x18 | 63 | 32 | 42 |
| 28x15 | 71.5 | 30 | 50.5 |
| 28x18 | 74 | 35 | 53 |
| 28x22 | 65 | 30 | 40.5 |
| 35x15 | 79 | 40 | 58 |
| 35x18 | 77.5 | 40 | 56.5 |
| 35x22 | 80 | 30 | 54.5 |
| 35x28 | 84 | 40 | 56 |
| 42x22 | 79 | 40 | 53.5 |
| 42x28 | 80 | 40 | 52 |
| 42x35 | 86 | 37 | 53.5 |
| 54x28 | 99 | 54 | 71 |
| 54x35 | 108.5 | 54 | 76 |
| 54x42 | 102 | 48 | 64 |
| 76.1 x54 | 138.5 | 76 | 100 |
| 88.9 x54 | 152 | 89 | 92 |
| 88.9 x76.1 | 175.5 | 89 | 112.5 |
| 108 x54 | 180 | 108 | 143 |
| 108 x76.1 | 201 | 108 | 146 |
| 108 x88.9 | 209 | 108 | 146 |
 |
 |
