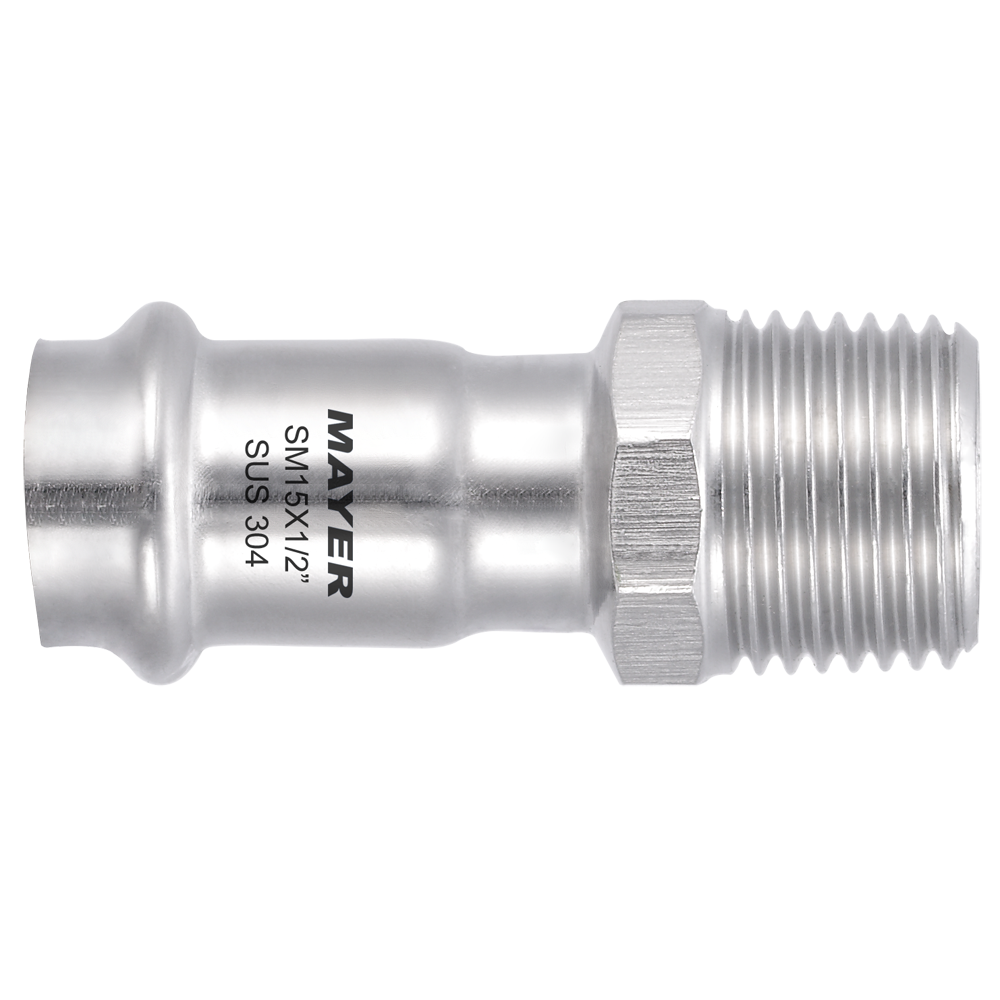

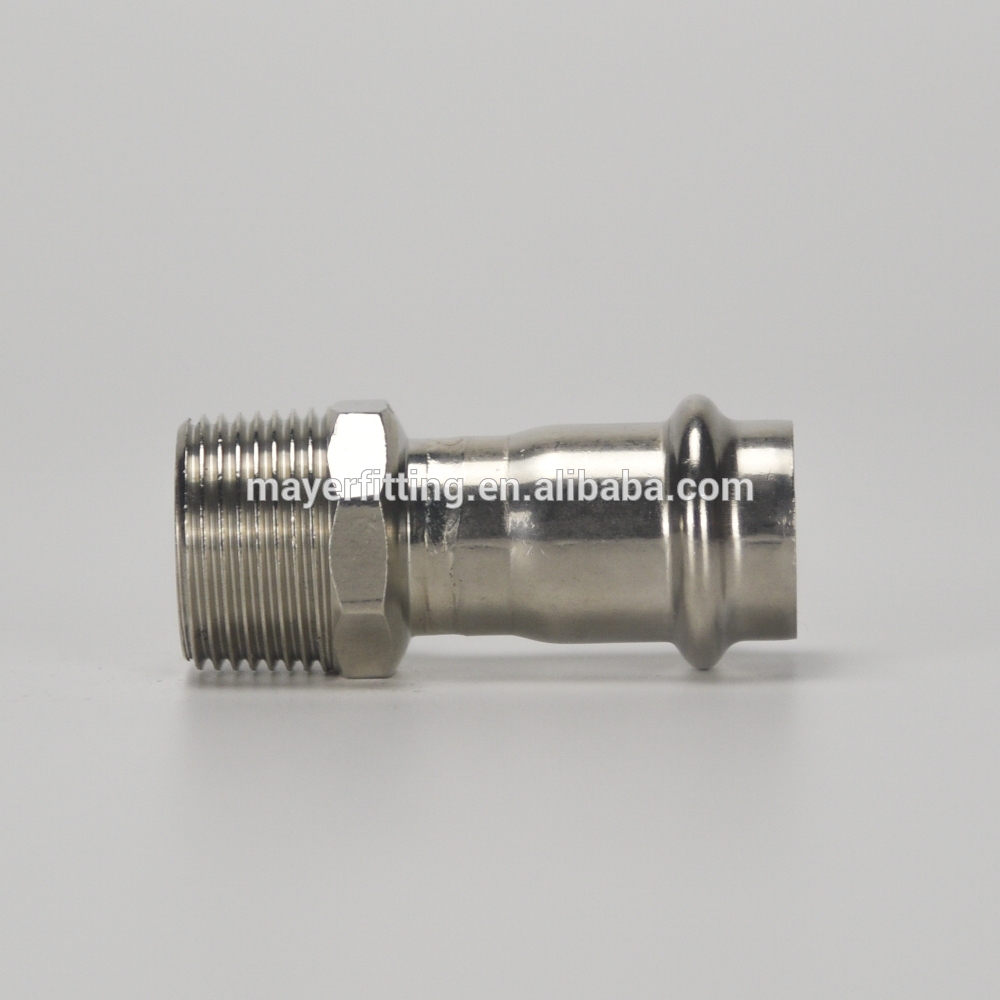

Stainless Steel Pipe Fitting Male Adaptor V Type DVGW Fitting for Solar System

Stainless Steel Pipe Fitting Male Adaptor V Type DVGW Fitting for Solar System

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
MAYER
Technics:
welding
Connection:
Male
Shape:
Equal
Head Code:
Round
Application:
Connect Pipes
Standard:
ANSI, JIS, DIN, EN
Certificate:
WRAS
Surface treatment:
Polishing
Size:
1/2' ~ 2'
Usage:
Joining Pipe Lines
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Product information

MAYER integrated stainless steel pipeline

Mayer Stainless Steel pipe systems are the first choice in metallics for flexibility, durability, ease of installation and longevity.

Suitable for commercial and industrial applications.

Mayer pipe systems deliver a competitive return on investment, with a favorable total cost of ownership.

An extensive range of pipes and fittings from 15mm to 300mm provides installers with a complete solution to meet diverse needs.

Quality is assured: all pipes and fittings must pass rigorous air and water tightness tests before leaving the factory.

Details


Application

Drinking Water, Cooling Water, Rainwater,

Heating,

Fire extinguishing system (wet), Sprinkle Systems (Wet)

Gas

Compressed Air

Ship Building



Technical information:

-- Material: Stainless steel 304 and 316L available.
-- Max working pressure 1.6MPa (equal to 232 psi), testing water pressure: 2.5MPa (equal to 362.5psi).
-- Working temperature from -20 to 110 degree centigrade (with Chlorinated butyl rubber O ring),
-- Suit medium: Cold water, hot water, compressed air, gas, oil etc

The product features as below:
1, thin wall stainless steel pipe could last for 70 years, it is the same life time with normal buildings.
2, no smell, no rusty.
3, recycle material
4, avoid welding, avoid fire dangerous.
Contact us for more details!

Product Range
Nominal Size
O.D. mm (I)
O.D. mm (II)
O.D. mm (E)
DN15
16.0
15.88
15
DN20
20.0
22.22
22
DN25
25.4
28.58
28
DN32
32.0
34.0
35
DN40
40.0
42.7
42
DN50
50.8
48.6
54
DN65
76.1
76.1
76.1
DN80
88.9
88.9
88.9
DN100
108
101.6
108
Packing & Delivery


Carton Size: 46 x 29.5 x 32

                       46 x 29.5 x 16

Delivery Time: 30 working days after the order is confirmed
