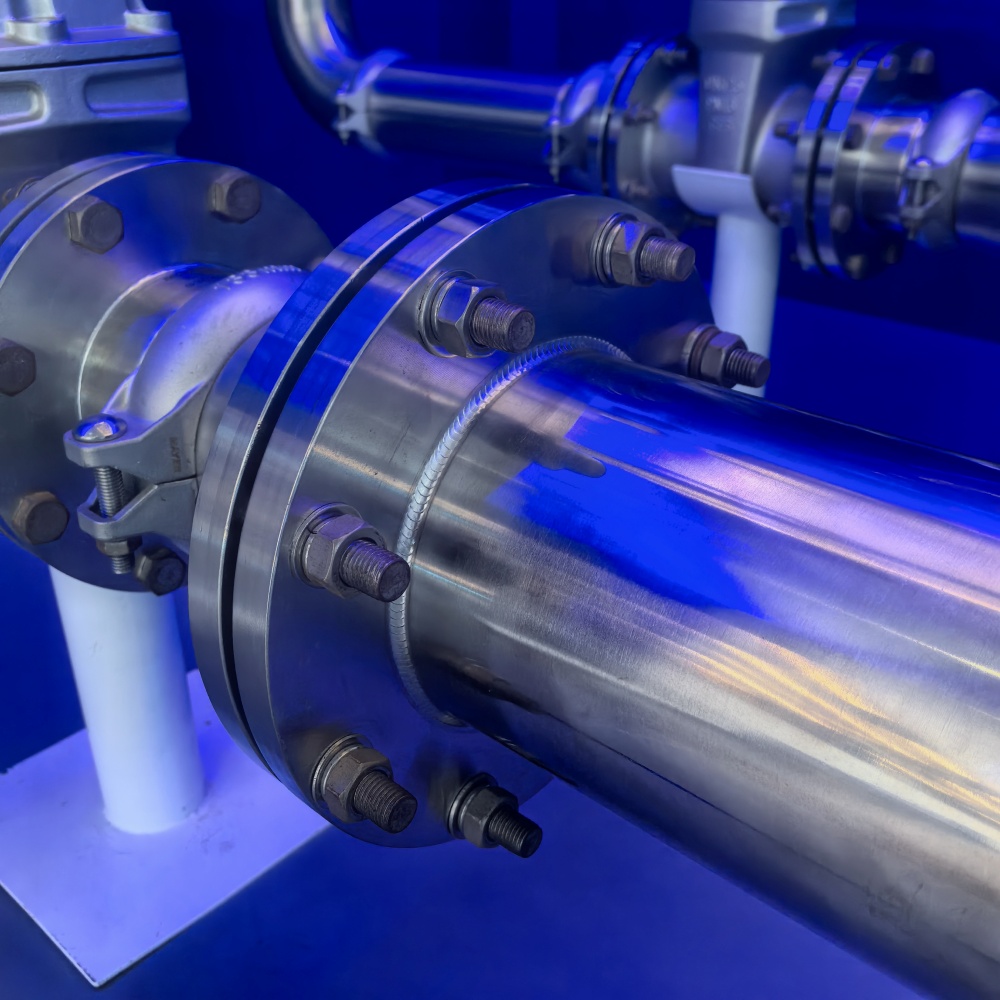

Stainless steel flange connector

Stainless steel flange connector

Stainless steel flange connector

MOQ
10pcs
Payment
L/C, T/T, Western Union, MoneyGram,Paypal
Place of Origin
China
Delivery Time
10-15 working days
Material
304/316L
Medium
Drinking water / Gas / Medicine gas / Sea water / Oil
Size / Thickness
DN25-DN300
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Advantages

As a material which can be implantable in human body, stainless steel has its natural advantages

1.

Corrosion-resistance and Longevity

2.

Simple Installation and Quick Operation

3.

High Intensity and Light Material

4.

Healthy Material and Environmental Friendliness

5.

Water Proof, Resistance to the Impact and High Pressure, Low Flow Obstacle

6.

Convenient Maintenance and Modification

Currently we have stainless steel tube & pipe, PE foam coated insulation tube, and coated corrosion resistant tube.
And stainless steel fittings for each spec of stainless steel tube & pipe are available.
Regularly for DN15-100 we recommend press-fit system, for above DN100 to DN300 welding fitting and grooved fitting are available.

Mayer Flange connectors with press end, and grooved end are available to fit for different connecting system.

Flanges are with different pressure, different type and different standard.

Tube & Pipe and Fitting material

Stainless Steel AISI 304, Stainless Steel 316L

MaterialCSiMnPSNiCrMo
SUS 304≤0.080≤1.00≤2.00≤0.045≤0.0308.0-11.018.0-20.0-
SUS 316L≤0.035≤1.00≤2.00≤0.045≤0.03010.0-15.016.0-18.02.0-3.0


For all products of Mayer, quality is assured: all pipes and fittings must pass rigorous air and water tightness tests before packing.

Currently we have three different series for stainless steel pipe and stainless steel press fitting accordingly.

We export our pipe and fitting to Asia, Europe, Australia and Africa, if you have demand for those products, welcome to contact us.

SeriesⅠ(GB)

Series Ⅱ(JIS)

E series(EN)

Nominal diameter

outer diameter

Thickness

Nominal diameter

outer diameter

Thickness

Code

outer diameter

Thickness

DN15

16

0.8

DN15

15.88

0.8

E0115

15

1.0

DN20

20

1.0

DN20

22.22

1.0

E0118

18

1.0

DN25

25.4

1.0

DN25

28.58

1.0

E0122

22

1.2

DN32

32

1.2

DN32

34

1.2

E0128

28

1.2

DN40

40

1.2

DN40

42.7

1.2

E0135

35

1.5

DN50

50.8

1.2

DN50

48.6

1.2

E0142

42

1.5

DN65

76.1

2.0

DN65

76.1

2.0

E0154

54

1.5

DN80

88.9

2.0

DN80

88.9

2.0

E0176

76.1

2.0

DN100

108

2.0

DN100

101.6

2.0

E0189

88.9

2.0



E01108

108

2.0
