RIDGID RP306 Pipe Crimping Tool - Specialized for Stainless Steel Pipes, Brass Pipes & Composite Pipes

Type: Pipe Crimping Tool

Model: RP306

Application: Crimping pipes

Pipeline Materials: Stainless Steel/Brass/Composite pipe

Delivery Time: 7 - 25days

Payment: TT

Price: Please contact US

Inquire Online

Related Products

RIDGID RP318 Pipe Press Tool for Stainless Steel, Copper & Composite Pipes

RIDGID RP306 Pipe Crimping Tool - Specialized for Stainless Steel Pipes, Brass Pipes & Composite Pipes

Product Information

Product Catalogue

	RIDGID Press Tool - RP306
Model	RP306
Rated Pressure	32KN (single valve)
Weight	2.6kg (excluding battery) 3kg (including 2.5Ah battery)
Battery Specification	18v 2.5Ah Samsung battery cell, 45minute fast charging lithum battery (charging capacity display)
Crimping Range	Stainless Steel pipe: OD15~54mm Copper Pipe: OD15~108mm Pex Pipe: OD15~108mm
Crimping Times (Full battery)	200~400times(accordingto different pipe diameters)
Crimping Cycle	7 seconds
LED Light	YES
LED Screen	NO

Download Technical Datasheet (PDF)

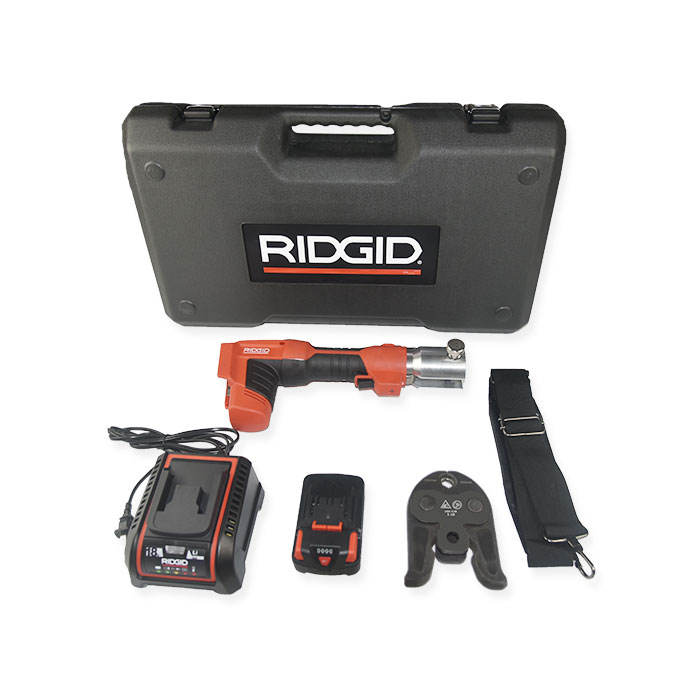

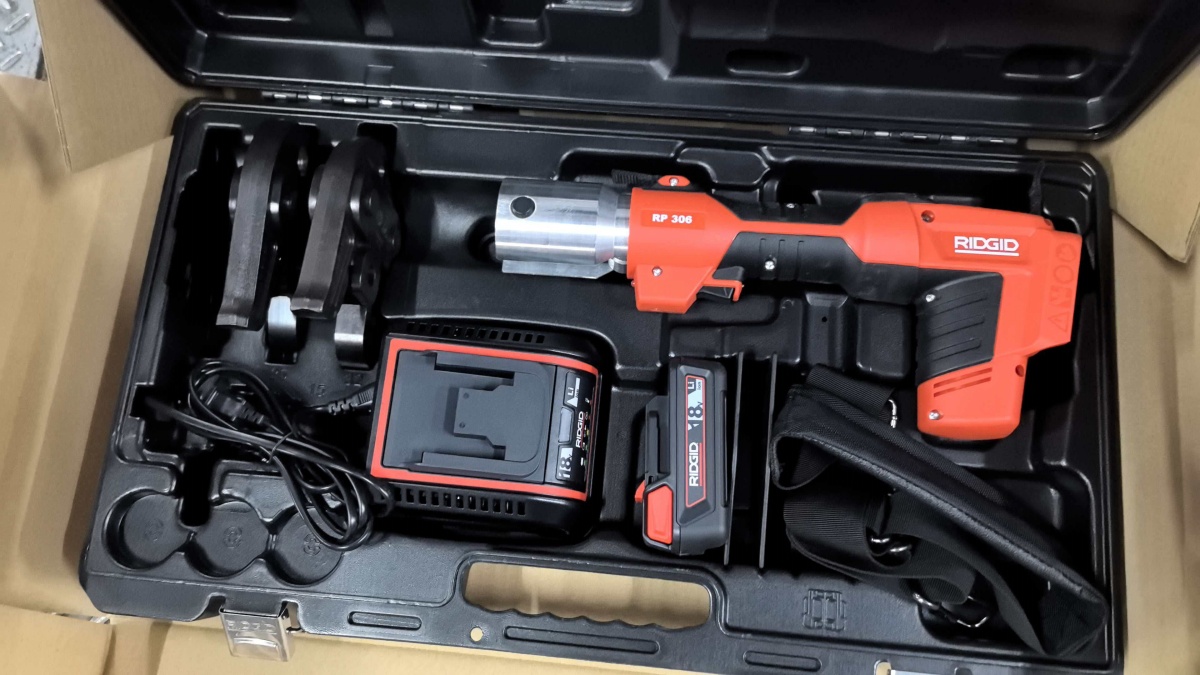

RIDGID RP306/Set: Battery x1pc (18V 2.5 Ah ) + Rapid Charger x1pc (100V~240V, 50~60hz) + Plastic Case x1pc + Belt x1pc
(not include jews)

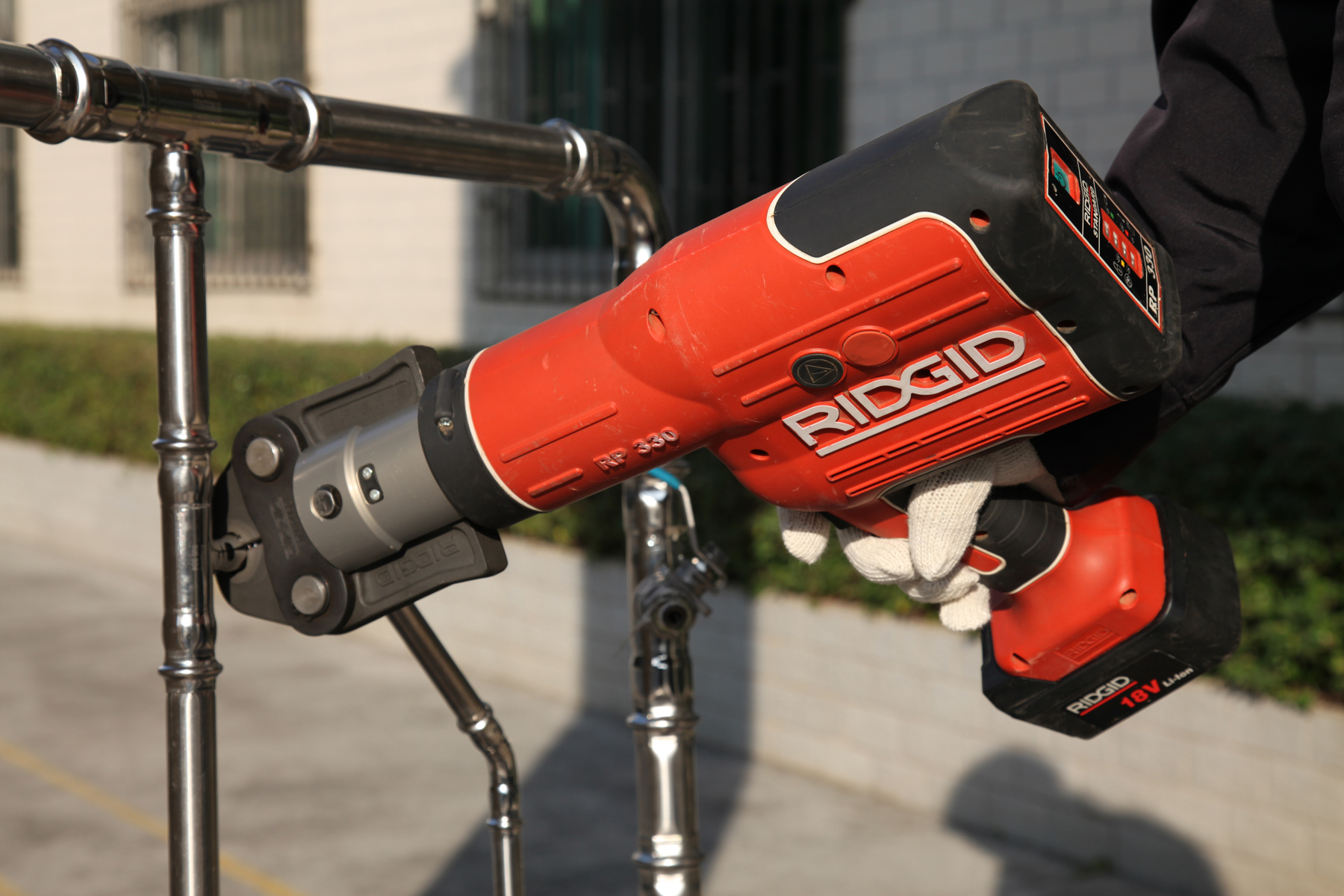

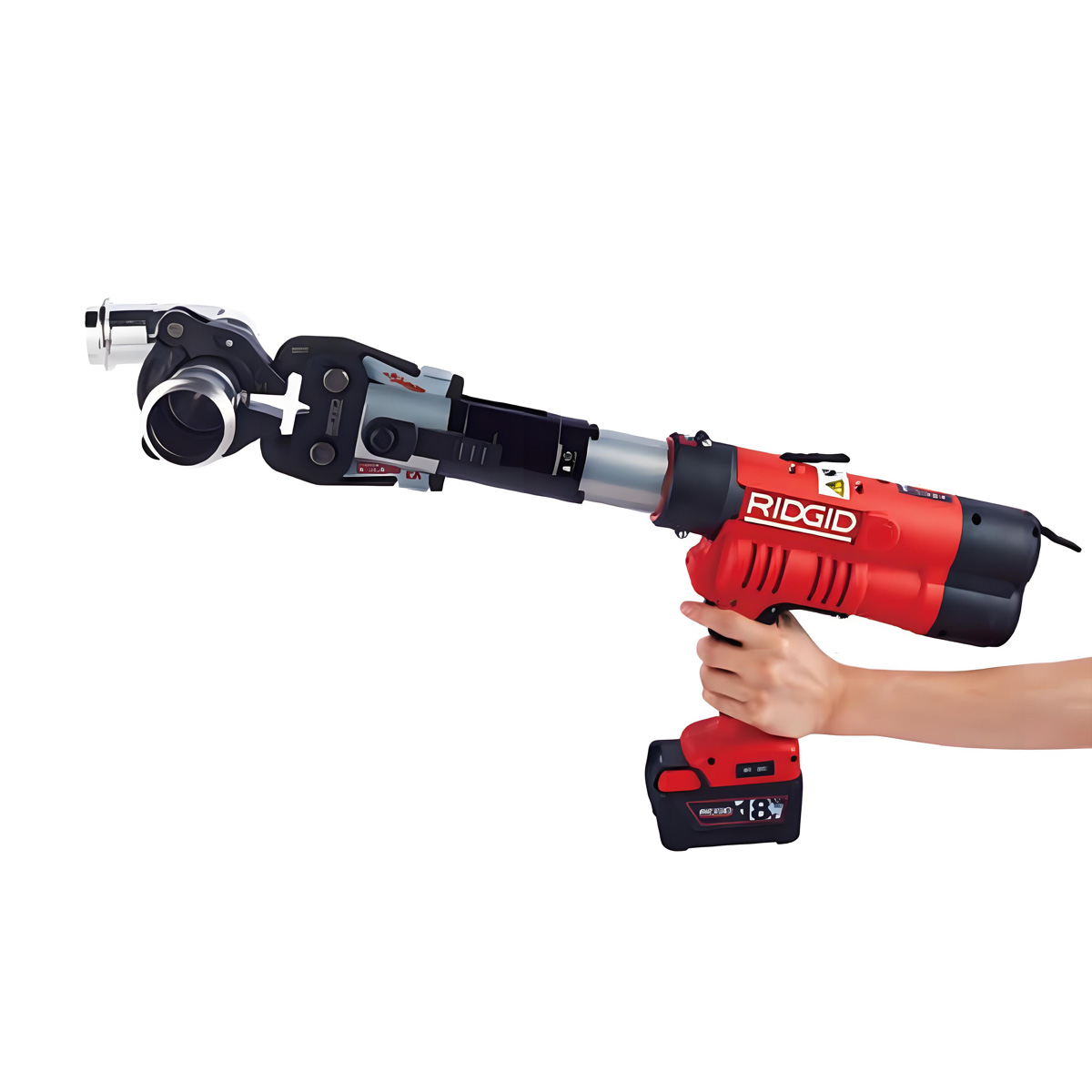

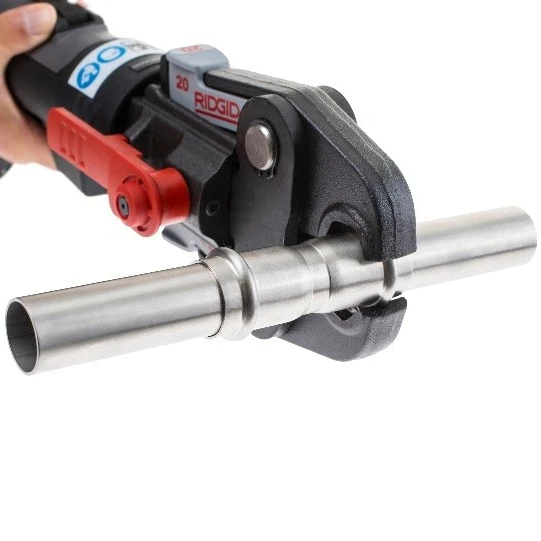

The RIDGID RP306 electro-hydraulic press tool can be used to press pipes and fittings made of the following materials:

Thin-wall stainless steel pipe (OD15 ~ 54mm)
Carbon steel pipe (OD15 ~ 54mm)
Copper tube (OD15 ~ 108mm)
Composite tube (OD15 ~ 108mm)

The RIDGID RP306 offers the following advantages:

1. Lightweight and compact: Weighs only 2.6 kg without battery, small in size, and comes with a shoulder strap, suitable for confined spaces and overhead work.

2. Efficient and fast: Single press cycle takes only 7 seconds, with 200-400 presses per fully charged battery.

3. Stable output: Hydraulic system delivers 32kN of output force for reliable performance, avoiding leakage risks.

4. Easy to operate: One-button operation with automatic retraction after pressing; 270° swivel head adapts to various working conditions.

5. Safety features: Equipped with LED light for dark environments, triple flame-retardant and explosion-proof battery protection, and patented safety plate on jaws.
