What are the temperature resistance ranges of different types of stainless steel pipes?

The temperature that stainless steel pipes can withstand is not a fixed value; it depends on several factors, most critically the material grade (type) of the stainless steel.

Simply put, the temperature resistance range of stainless steel pipes generally falls between -196°C and 1150°C, but different materials perform very differently within this range.

Below, I will explain in detail based on material types, influencing factors, and common application scenarios.

一. Temperature Resistance by Material Type

The stainless steel family is extensive, primarily including austenitic, ferritic, martensitic, and duplex stainless steels, each with varying temperature resistance.

1. Austenitic Stainless Steel (Most Common)

This is the most widely used type of stainless steel, such as 304, 316, 321, and 310S. They offer good high-temperature strength and oxidation resistance.

· 304 Stainless Steel Pipes:

• Continuous Service Temperature: Approximately 870°C

• Maximum Tolerable Temperature: Around 925°C

• Characteristics: Good strength below 800°C and oxidation resistance below 850°C. However, prolonged use in the 425-860°C range may cause "sensitization," increasing the risk of intergranular corrosion.

· 316/316L Stainless Steel Pipes:

• Temperature resistance is similar to 304, but due to the addition of molybdenum (Mo), it offers slightly better high-temperature strength.

• Superior resistance to pitting and stress corrosion cracking caused by chlorides at high temperatures compared to 304.

· 321 Stainless Steel Pipes:

• Continuous Service Temperature: Approximately 900°C

• Characteristics: The addition of titanium (Ti) stabilizes carbides, providing excellent anti-sensitization properties. It is highly suitable for prolonged use in the 425-860°C sensitization range and is commonly used in mid-to-high-temperature applications.

· 310S Stainless Steel Pipes:

• Continuous Service Temperature: Approximately 1050°C

• Maximum Tolerable Temperature: Up to 1150°C

• Characteristics: High chromium (Cr) and nickel (Ni) content provide exceptional oxidation and carburization resistance. It is a typical heat-resistant stainless steel, often used in high-temperature equipment like furnace tubes and burners.

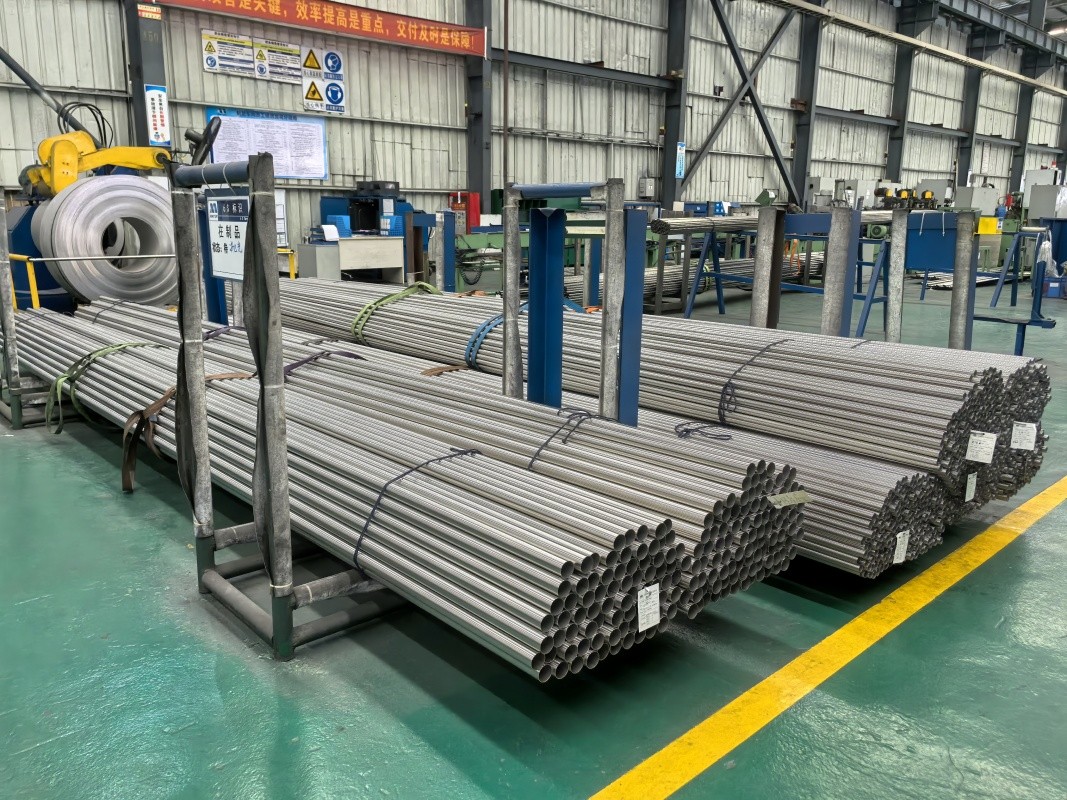

304/316L stainless steel pipe

2. Ferritic Stainless Steel (e.g., 430, 409)

• Oxidation and corrosion resistance are inferior to austenitic stainless steels.

• Continuous Service Temperature: Typically not exceeding 750-800°C.

• Grain growth occurs at high temperatures, leading to reduced toughness (embrittlement), limiting its applications.




3. Martensitic Stainless Steel (e.g., 410, 420)

• These steels gain high strength primarily through heat treatment but have poor corrosion resistance.

• Very poor high-temperature performance, as their microstructure softens upon tempering at elevated temperatures.

• Generally not recommended for continuous use above 650°C.

二. Key Factors Affecting Temperature Resistance

1. Oxidation Resistance (Scaling Resistance): Refers to the ability of the stainless steel surface to resist scaling (oxide layer formation) at high temperatures. Chromium (Cr) content is the primary factor determining oxidation resistance—higher content allows for higher temperature tolerance (e.g., 310S).

2. High-Temperature Strength: Refers to the ability to resist deformation and creep at high temperatures. Alloying elements like nickel (Ni) help maintain high-temperature strength.

3. Service Environment (Atmosphere):

• Oxidizing Atmosphere: Such as air, has minimal impact on high-chromium stainless steels.

• Reducing/Sulfidizing Atmosphere: Such as sulfur-containing exhaust gases, can severely corrode stainless steel, significantly reducing its tolerable temperature.

• Carburizing Atmosphere: Such as hydrocarbon-containing gases, can cause "carburization," making the material brittle. High-nickel steels like 310S offer strong carburization resistance.

4. Continuous vs. Intermittent Use:

• Continuous Service Temperature: The temperature at which the pipe can operate safely long-term (tens of thousands of hours).

• Maximum Tolerable Temperature: The temperature the pipe can short-term withstand without significant failure (e.g., melting, severe oxidation), but it cannot operate at this temperature long-term.

三. Summary and Application Scenarios Reference

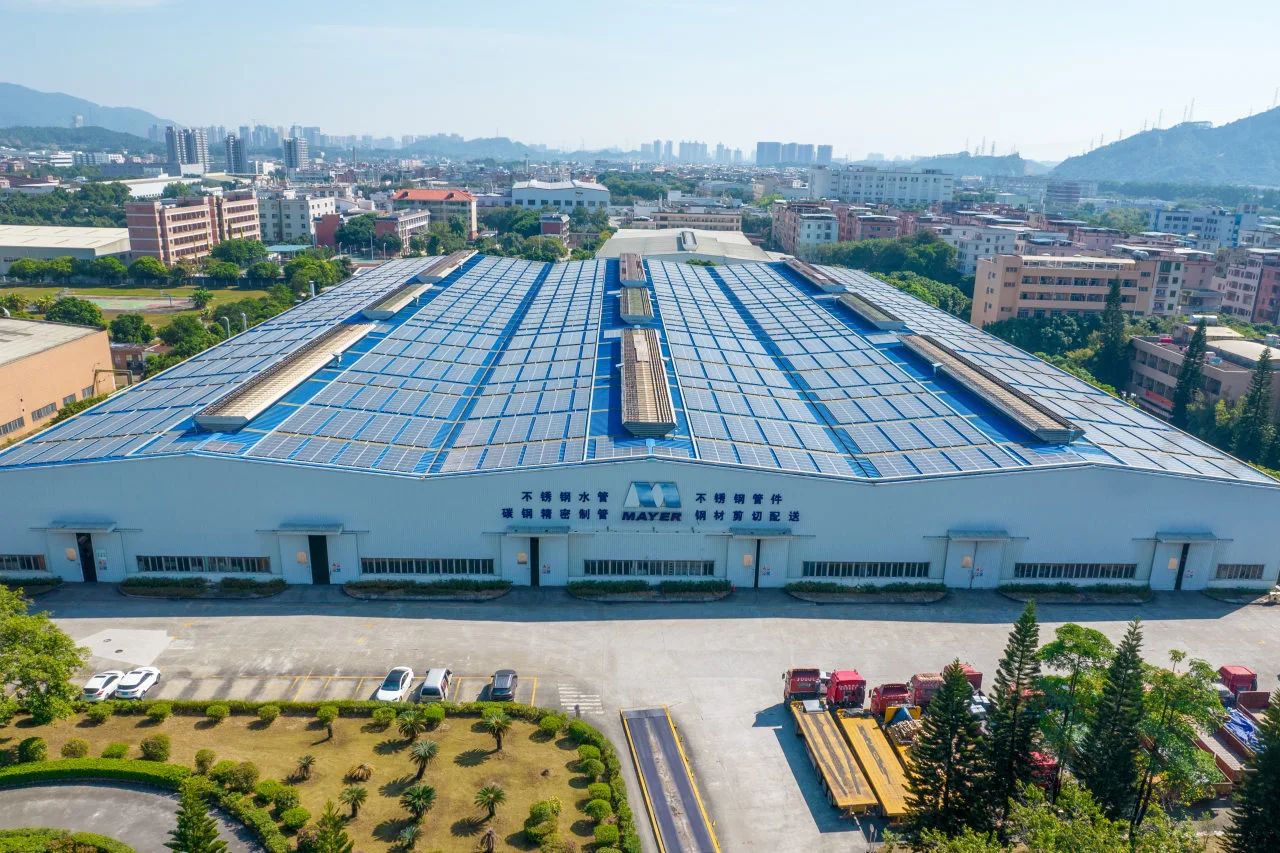

Mayer stainless steel pipe facory

Important Notes:

1. Pressure Factor: The above temperatures are reference values for atmospheric or low-pressure conditions. If the pipe is under high internal pressure, its allowable maximum working temperature will significantly decrease and must be calculated based on pressure vessel design standards.

2. Consult Professionals: For critical high-temperature and high-pressure applications, always refer to the specific material's ASME, ASTM, or GB standards, or consult a materials engineer. This answer is for general informational purposes only and should not be used as a basis for specific designs.

3. Low-Temperature Performance: Austenitic stainless steels (e.g., 304, 316) also exhibit excellent low-temperature toughness and can be used in environments as cold as -196°C (liquid nitrogen).

In summary, when selecting stainless steel pipes, it is essential to consider the specific operating temperature, pressure, medium environment, and cost-effectiveness to choose the most suitable material.
