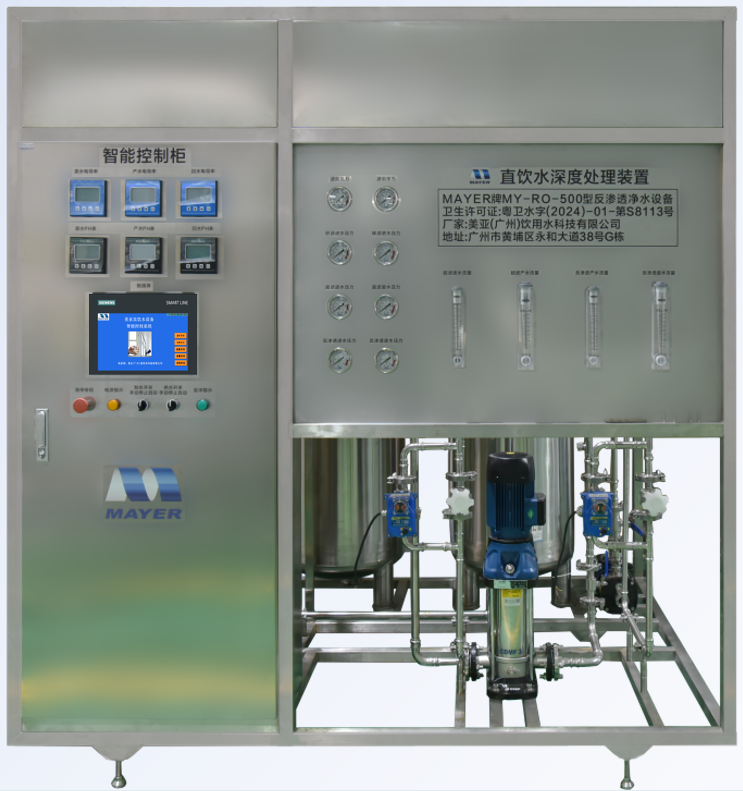

MY-RO-500 Industrial Pure Water Equipment Factory | OEM & ODM Water Purification Solutions

Product Model: MY-RO-500/NF-500

Water Yield: 500L/H

Mainframe Size (mm): 2000*1200*1400

Net Weight of Product (kg): 400

Power Rating (w): 2700

Rated Voltage: 380VAC/50HZ

Delivery Time: 30-60 days

Country of Origin: China

Inquire Online

Related Products

Product Information

Product Catalogue

Central Water Purification Equipment Series-Ro Reverse Osmosis/Nanofiltration

Product Model	MY-RO-500/NF-500
Water Yield	500L/H
Mainframe Size (mm)	200012001400
Net Weight of Product (kg)	400
Power Rating （w)	2700
Rated Voltage	380VAC/50HZ
Mode of Operation	Touch screen + real-time online monitoring

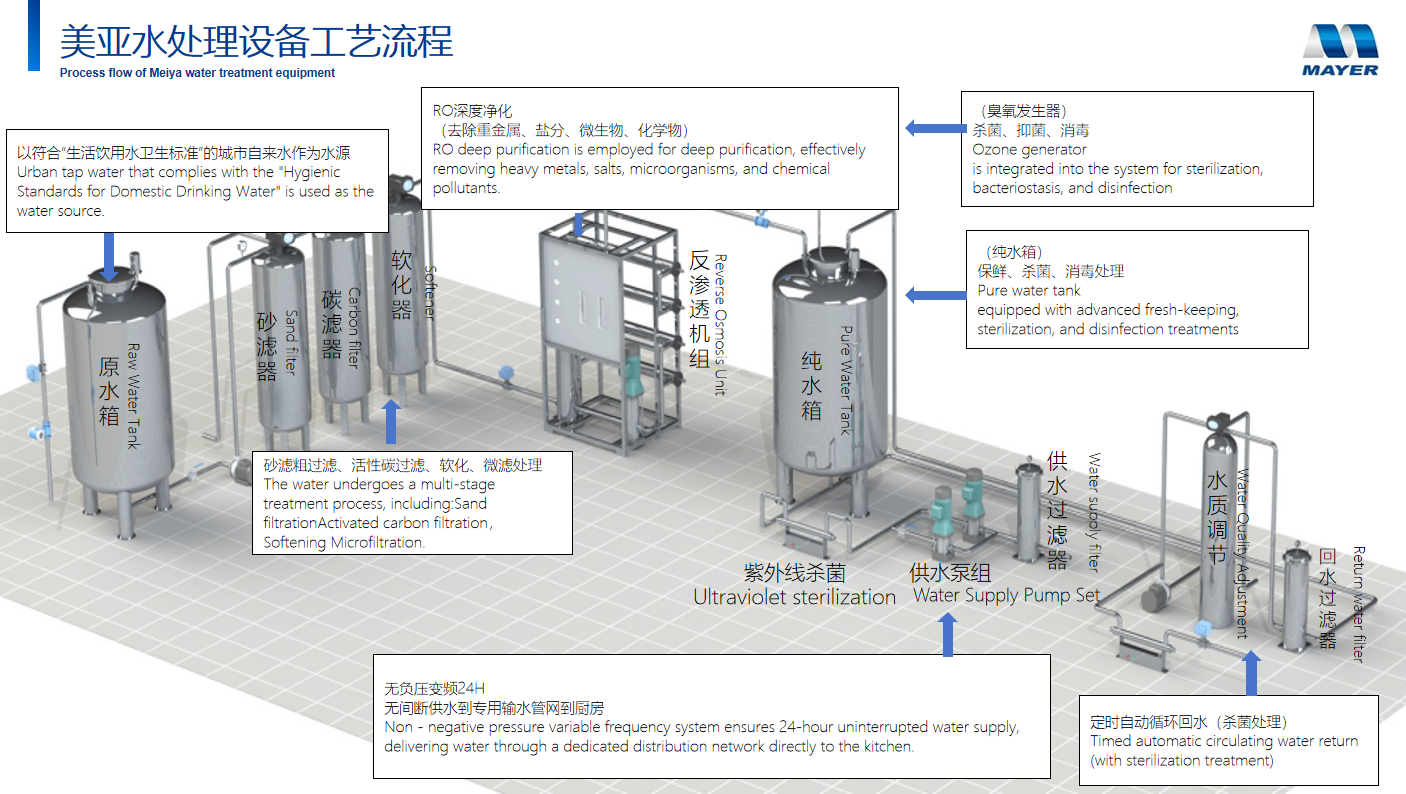

Water Purification Process	Quartz sand + activated carbon + UF (ultrafiltration) + MF (precision filtration) + RO reverse osmosis / NF nanofiltration (Level 5 filtration)
Tap Water Inlet Diameter	DN25
Purified Water Outlet Diameter	DN25
Clean Water Outlet Diameter	DN25
Adequate Water Sources	Municipal water, groundwater
Water Intake Quality	TDS<500, 1000, water temperature 5℃<25℃
Water Quality of Production	Complies with CJ94-2005 drinking water quality standard of Ministry of Housing and Urban-Rural Development
Working Pressure	Pre-treatment 0.2-0.4Mpa, RO host0.5-1.0Mpa
Ratio of Desalinization	(The desalination rate will vary depending on the inlet water temperature, water pressure and membrane contamination degree)
Percent Recovery	50-70% (The recovery rate will vary depending on the temperature of the water, the pressure of the water and the degree of membrane contamination)

What is Industrial Pure Water Equipment?

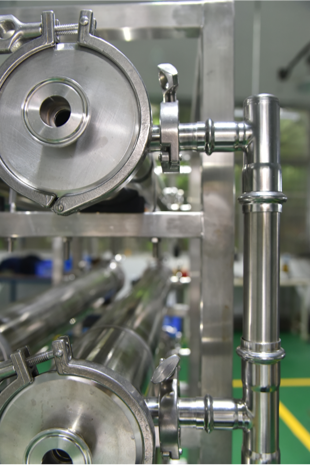

Industrial Pure Water Equipment is a water treatment system designed to remove impurities, dissolved salts, microorganisms, organic substances, and particles from raw water to produce high-purity process water. The equipment is commonly manufactured with 304 or 316L stainless steel housings and piping systems, offering excellent corrosion resistance, hygiene, and long-term reliability for demanding industrial applications.

Main Functions of Industrial Pure Water Equipment

1.Provide High-Purity Process Water

Supplies clean, stable, and contaminant-free water for industrial production, improving product quality and manufacturing efficiency.

2. Remove Harmful Contaminants

Effectively removes suspended solids, heavy metals, bacteria, viruses, dissolved ions, and organic contaminants.

3. Protect Industrial Equipment

Minimizes scaling and corrosion in pipelines, boilers, heat exchangers, and production equipment, extending service life.

4. Meet Industry Water Quality Standards

Ensures compliance with stringent water quality standards required by food, pharmaceutical, electronics, and other industries.

Applications of Industrial Pure Water Equipment

1. Pharmaceutical Industry

Used for pharmaceutical process water, equipment cleaning, and purified water systems.

2. Food & Beverage Industry

Provides purified water for beverage production, food processing, and CIP cleaning systems.

3. Electronics & Semiconductor Industry

Supplies high-purity water for semiconductor fabrication, PCB manufacturing, and ultrapure water systems.

4. Chemical Industry

Used in chemical processing, production lines, and cooling systems.

5. Power Generation Industry

Provides boiler feed water, cooling water, and process water for power plants.

6. Medical Industry

Used in hospitals, laboratories, sterilization equipment, and medical instrument cleaning.

7. Automotive Manufacturing

Supplies purified water for painting, component cleaning, and manufacturing processes.

8. Solar & New Energy Industry

Provides purified water for solar cell, lithium battery, and renewable energy manufacturing.

Advantages of Stainless Steel Industrial Pure Water Equipment

1. Excellent Corrosion Resistance

304 and 316L stainless steel provide outstanding resistance to corrosion from purified water and chemicals, ensuring long-term performance.

2. Superior Hygienic Performance

Smooth stainless steel surfaces prevent bacterial growth and meet hygiene standards for food, pharmaceutical, and potable water applications.

3. High Strength and Long Service Life

Offers excellent mechanical strength, high pressure resistance, and reduced maintenance costs.

4. Excellent Heat Resistance

Suitable for high-temperature sterilization and demanding industrial processes.

5. Easy Cleaning and Maintenance

The smooth stainless steel surface allows easy cleaning and ensures reliable long-term operation.

6. Environmentally Friendly

Stainless steel is fully recyclable, supporting sustainable manufacturing and environmental protection.

Why Use 304/316L Stainless Steel for Industrial Pure Water Equipment?

304 and 316L stainless steel combine corrosion resistance, hygiene, strength, and durability, making them ideal materials for industrial pure water equipment. 304 stainless steel is suitable for most purified water applications, while 316L stainless steel, with added molybdenum, offers superior resistance to chlorides, making it the preferred choice for pharmaceutical, chemical, marine, and high-purity water systems.
