Product Paramenters
| Grooved Flange |
| Product code |
Size (mm) |
| G53000065 |
DN65 |
| G53000080 |
DN80 |
| G53000100 |
DN100 |
| G53000125 |
DN125 |
| G53000150 |
DN150 |
| G53000200 |
DN200 |
| G53000250 |
DN250 |
| G53000300 |
DN300 |
304/316L Stainless Steel Grooved Flange, Corrosion-Resistant, Easy Installation, Special for Water Supply & Drainage/Fire Protection Engineering
High-Pressure 316L Stainless Steel Grooved Flange, Special for Chemical Pipes, Good Sealing Performance, National Food-Grade 316L Stainless Steel Grooved Flange, Sanitary Pipe Connection, Acid-Alkali Resistant, Durable

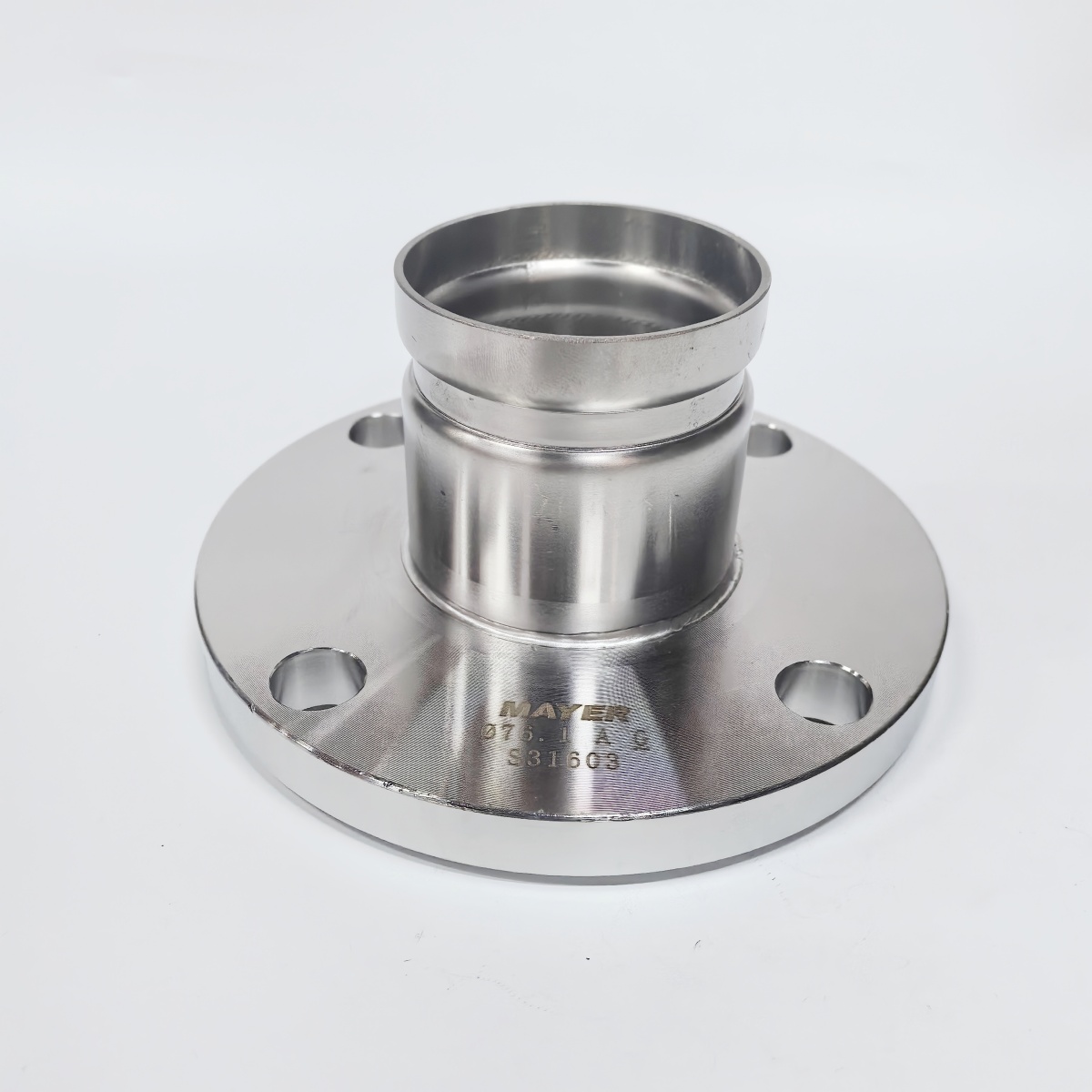

304/316L stainless steel grooved flange is a high-quality connection fitting specially designed for grooved piping systems, precision-manufactured from food-grade and industrial-grade stainless steel raw materials. With excellent corrosion resistance, convenient installation method and stable sealing effect, the product is widely used in water supply and drainage, heating and ventilation, chemical industry, food and medicine and other fields, providing reliable guarantee for the safe operation of piping systems. Inquire Now

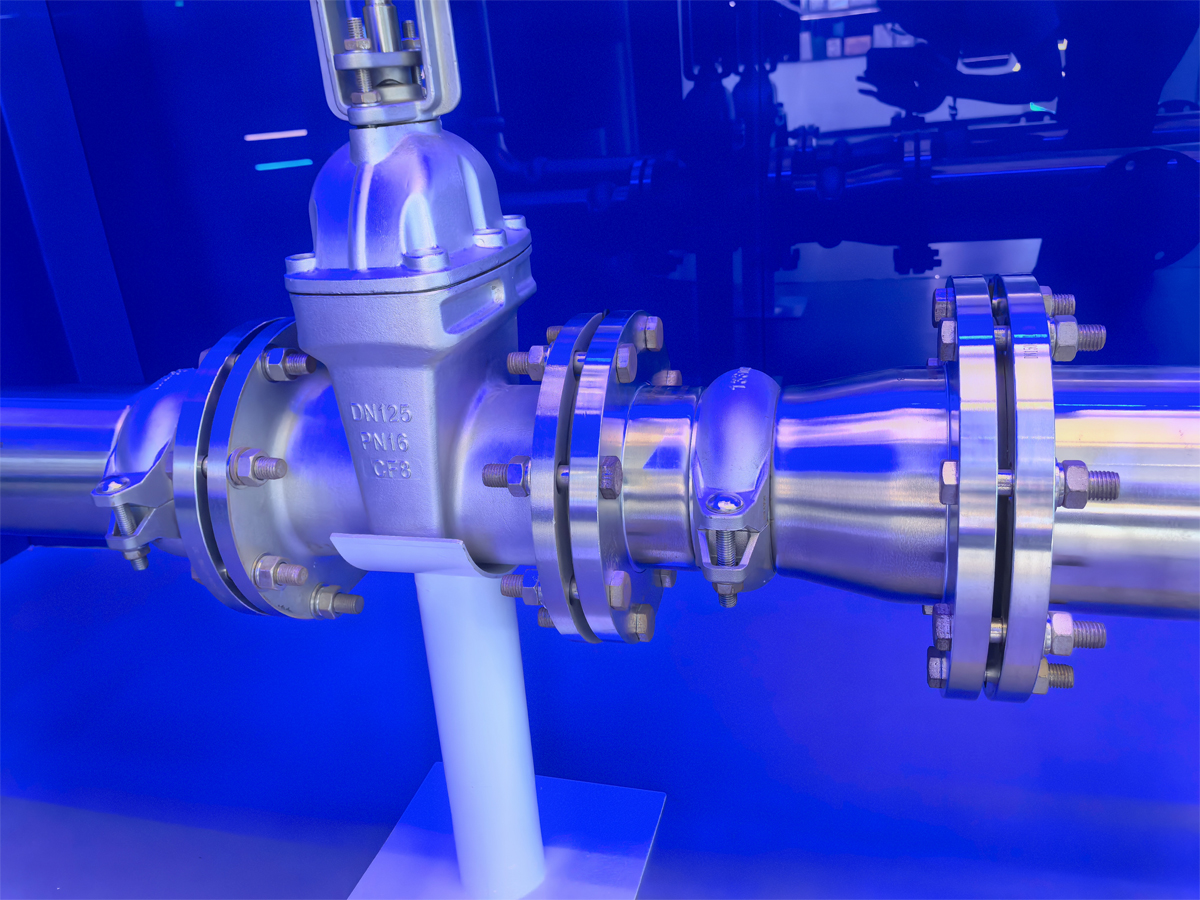

1. Grooved connection design: Adopts standard grooved sealing structure, no welding required, quick connection can be completed through special grooved pipe fittings, which greatly shortens the construction period, reduces installation cost, and avoids the risk of material damage caused by welding.

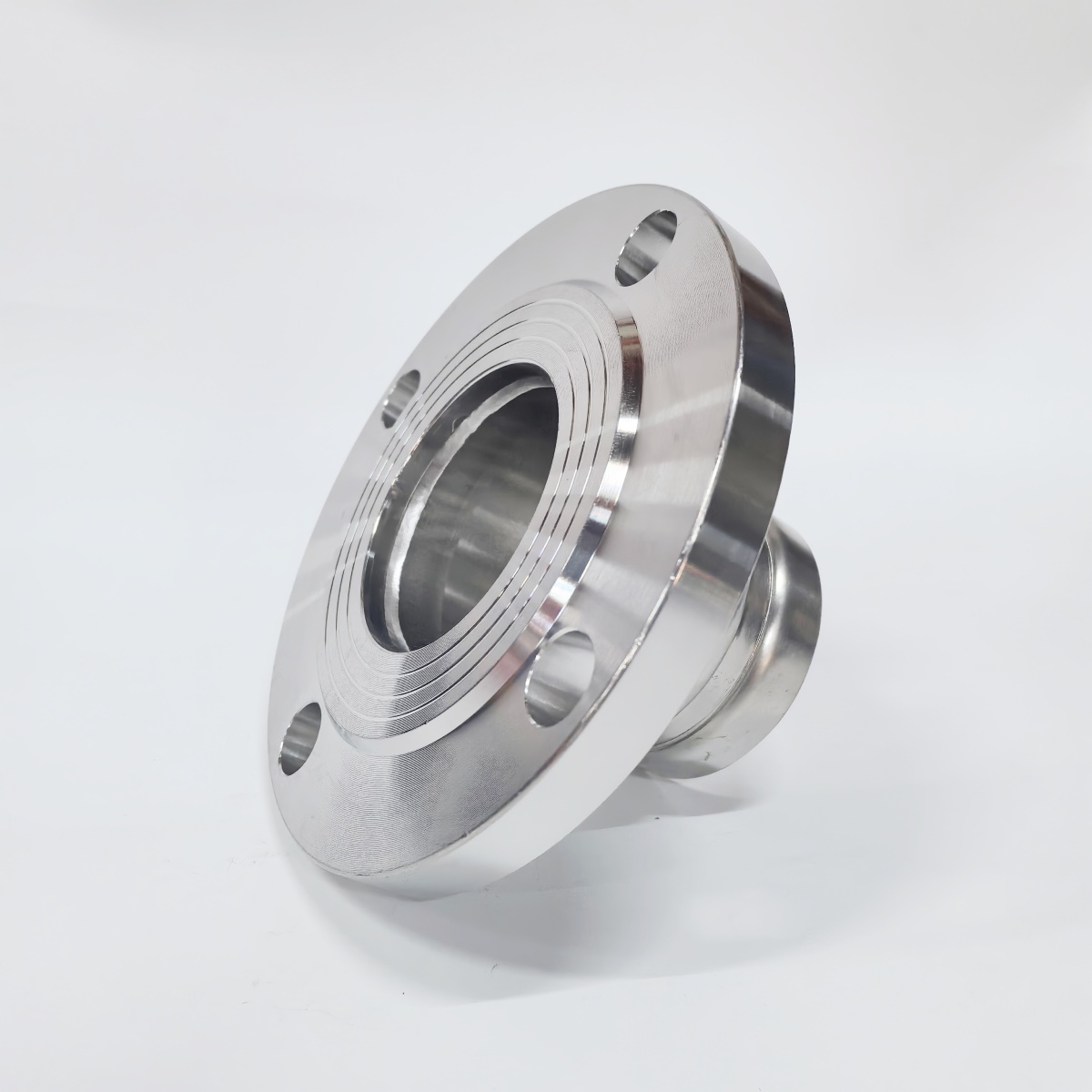

2. Precision sealing performance: The flange sealing surface is finely processed, and combined with a special rubber sealing ring, it can achieve multiple sealing effects, effectively prevent medium leakage, and the sealing pressure is stable, suitable for piping systems with different working pressures.
3. High-strength structure: The whole adopts one-piece molding process, the flange has high strength and good rigidity, can bear the axial and radial forces of the piping system, and still maintain structural stability under complex working conditions such as vibration and impact.

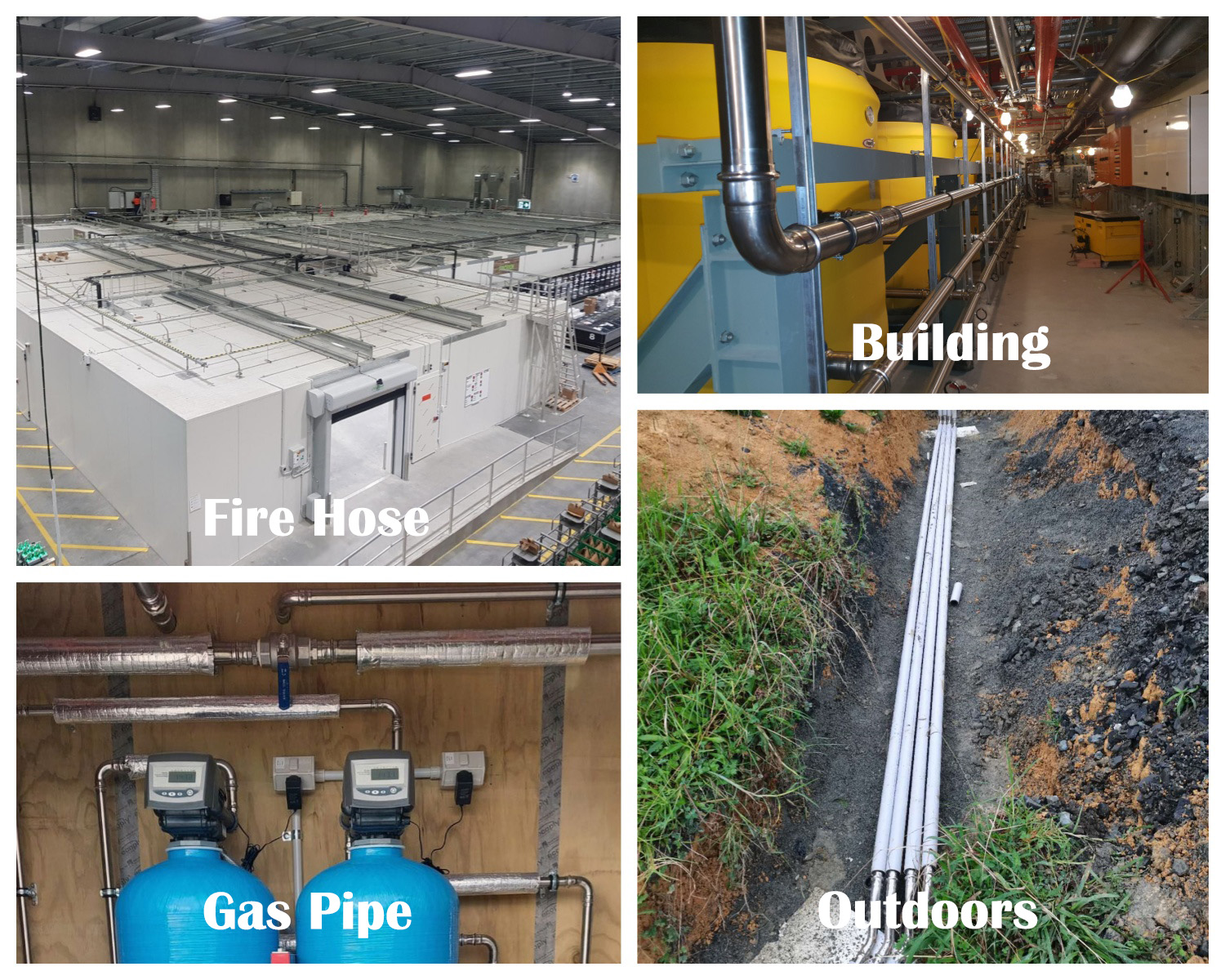

Application Scenarios
Civil field: Building water supply and drainage pipes, heating and air conditioning water circulation systems, secondary water supply equipment connections, etc.
Industrial field: Chemical raw material transportation pipelines, petrochemical supporting systems, power industry steam and water pipelines, pharmaceutical industry sterile pipelines, etc.
Special fields: Sanitary pipelines in food processing industry, seawater treatment systems in marine engineering, pipelines in corrosive environment of sewage treatment plants (316L material is preferred).
All 304/316L stainless steel grooved flanges have passed material composition testing, pressure resistance testing and sealing testing, and meet the requirements of GB/T 12459-2017 and ANSI B16.5 standards. Customized products with different specifications (DN50-DN300) and pressure levels can be provided according to customer needs, and complete pre-sales technical consultation and after-sales quality assurance services are also provided.
